Hubbell Wiring Device-Kellems HBL27W76BK

Hubbell Wiring Device-Kellems HBL27W76BK

mpn:
HBL27W76BK
brand:
HUBBELL WIRING DEVICE-KELLEMS
manufacturer:
HUBBELL WIRING DEVICE-KELLEMS
MPN:
HBL27W76BK
Weight:
0.04875
Weight:
1.0 LB
Preferred Price:
156.3
Price:
156.3
Min Simple Price:
85.41
Absolute Min Price:
121.28
Min Price:
121.28
Dimensions:
[9.0, 7.0, 3.0]
qty:
21
simpleSku:
DY4OTU:::HBL27W76BK
sku:
DY4OTU::5X:HBL27W76BK@y0
condition:
11
seller:
sustainablesupply.com
amzMan:
wiring device-kellems
HazMat:
False
DropShip:
False

Attributes

Key ^Value
Amperage Rating20A
Amperage Rating, Amps, Amps - Plugs and Receptacles20
Amperage, Current / amperage rating, Current Rating20 A
Antimicrobial, Corrosion Resistant, Isolated Ground, Midget Locking, Power Indicating Light, Power IndicatorNo
ApprovalsCSA, NSF, UL
Body Type, Connection OrientationStraight
BrandTwist-Lock, Hubbell Wiring Device - Kellems
Cap TypePress-On Cap
Catalog Number, Item Number, Manufacturer Part NumberHBL27W76BK
Color, Color - Plugs and Receptacles, Color Family, Housing ColorBlack
Contact MaterialNickel-Plated Brass
Cord Size0.325 in to 0.875 in
Corrosion Resistant, Shrouded, WatertightYes
Country of OriginUS - United States
Country of Origin (subject to change)United States
Dimenions2.51 in. x 2.51 in. x 5.69 in.
Dimensions2.51 in x 2.51 in x 5.69 in
ECCNEAR99
Family SeriesHubbell Plugs & Receptacles
For Maximum Cable Diameter0.875 in
For Minimum Cable Diameter0.375 in
GradeIndustrial/Commercial
Grade - Plugs and Receptacles, MarketIndustrial
Gross Weight0.78 lbs
GTIN00783585131825
Height5.69 in
Horsepower Rating5 hp
Housing MaterialThermoplastic Elastomer
HP5.0
Industry Standard(s), StandardMeets NEMA WD-1, WD-6 And ANSI Standards
IP RatingIP69K
Item type20A Watertight Twist-Lock Connector
Item, Item - Plugs and ReceptaclesWatertight Locking Connector
Length, Outside Diameter, Overall Length2.51 in
ManufacturerHubbell Wiring Device-Kellems, Hubbell
MaterialThermoplastic Elastomer, Valox
Maximum Operating Temperature60 Degrees C
Maximum Wire Size10 AWG
Minimum Operating Temperature-40 Degrees C
Minimum Wire Size18 AWG
MountingCable
NEMA ConfigurationL16-20
NEMA Configuration, NEMA Plug Configuration - Plugs and Receptacles, Nema Rating, NEMA Receptacle ConfigurationL16-20R
NEMA Enclosure Rating12, 4, 4X, 6, 6P
NEMA Rating4, 4X, 6, 6P, 6
Net Weight0.5 lbs
No. of Poles, Number of Poles, Phase3
No. of Wires, Number of Wires4
Number of poles3-Pole
Number of wires4-Wire
PhaseThree
Rated Voltage, Voltage - Plugs and Receptacles, Voltage Rating480V AC
Resistance PropertiesCorrosion Resistant, Moisture Resistant, UV/Sunlight Resistant
Shrouded / Non-ShroudedNon-Shrouded
Special FeaturesCorrosion resistant
StandardsANSI
TypeConnector Body
UL 94 Flammability RatingHB
UNSPSC39121421
UPC783585131825
Voltage480VAC
Voltage Rating3 Phase 480
Voltage, Voltage rating description3 Phase 480 VAC
Width (in)2.51
Wire Connection TypeScrew Terminals
Wire size10/3 S, 10/4 S, 10/5 S
Wiring StyleStandard

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomsustainablesupply.comC289034385.4185.411In StockHubbell Kellems0.7585.41 @ Qty: 1+
thumbzoomGalcoHBL27W76BK-HBBL91.2291.221In StockHubbell0.7891.22 @ Qty: 1+
cbtcompany.comHBL27W76BK94.7694.761In StockHubbell Wiring Device-Kellems94.76 @ Qty: 1+
thumbzoomZoroG999071495.7895.78184Hubbell0.7595.78 @ Qty: 1+
Graybar25882279108.4048108.40481In StockHubbell Wiring Device - Kellems108.4048 @ Qty: 1+
standardelectricsupply.com2317804118.0118.01In StockHubbell118.0 @ Qty: 1+
thumbzoomMRO Supply5018041118.0118.01In StockHubbell Wiring118.0 @ Qty: 1+
steinerelectric.com955468118.41118.411In StockHubbell Wiring Device-Kellems118.41 @ Qty: 1+
thumbzoomgordonelectricsupply.comHBL27W76BK119.77119.771In StockHUBBELL119.77 @ Qty: 1+
thumbzoomturtle.comHUB HBL27W76BK126.4126.41In StockHubbell126.4 @ Qty: 1+
thumbzoomcrescentelectric.com862223149.91149.911In StockHubbell Wiring Device - Kellems149.91 @ Qty: 1+
thumbzoomRaptor SuppliesAH8XMV212.140071212.1400711In StockHUBBELL WIRING DEVICE-KELLEMS212.140071 @ Qty: 1+
B076CBLB5X
117.99 USD
Hubbell Wiring Device-Kellems HBL27W76BK

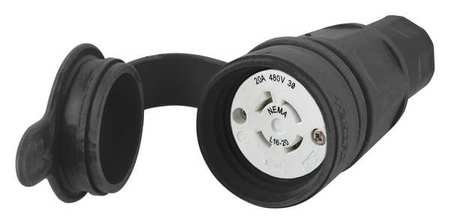

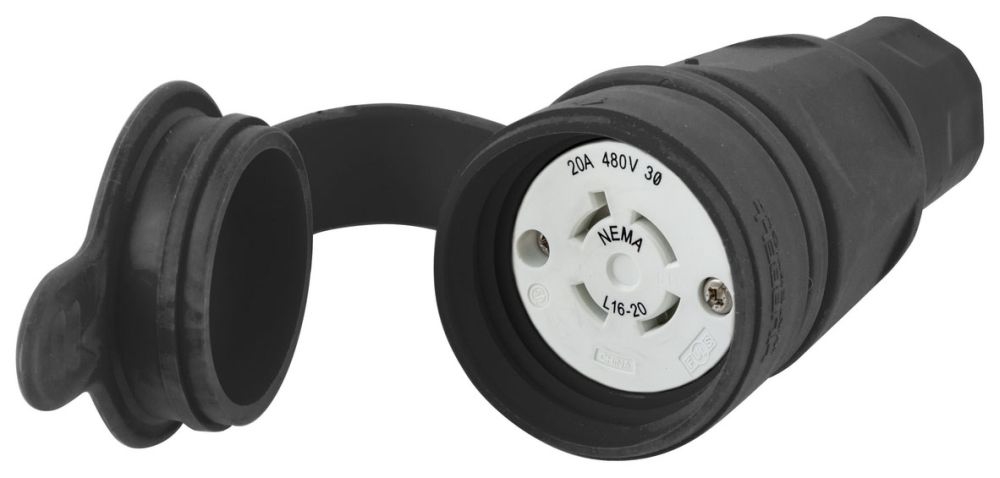

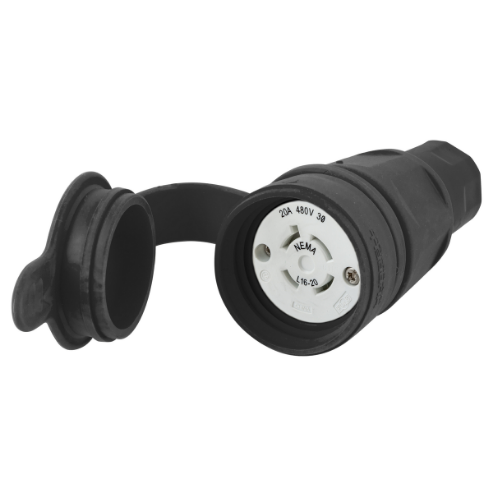

Watertight Devices, Twist-Lock Connector, 20A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-20R, Black

Watertight Devices, Twist-Lock Connector, 20A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-20R, Blackzoom
