Hubbell HBL47CM20C

B00GQQT38M

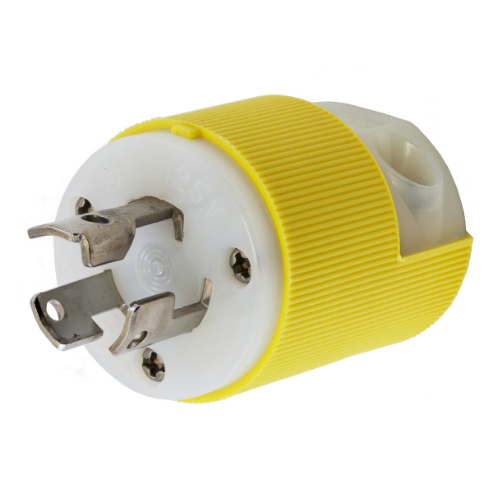

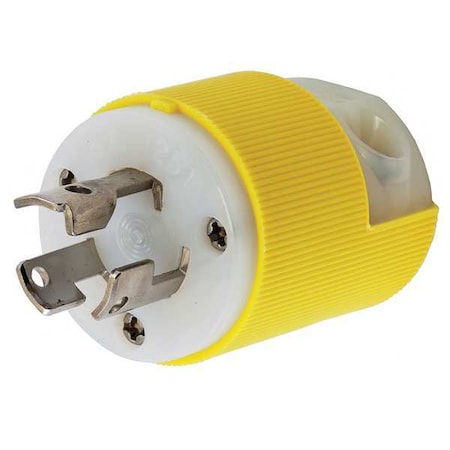

Hubbell - Hbl47cm20c - Hubbell Locking Devices Twistlock Marine Grade Male Plug 15a 125v 2-pole3-wire Grounding L5-15p Screw Terminal Yellow (Each)

Hubbell - Hbl47cm20c - Hubbell Locking Devices Twistlock Marine Grade Male Plug 15a 125v 2-pole3-wire Grounding L5-15p Screw Terminal Yellow (Each)zoom

Attributes

Key Value
0.050.05
0.0500000.050000
Agency ApprovalsUL ; CSA
Amperage15 A
Amperage Rating15A
Amps15
Amps - Plugs and Recept.15
AntimicrobialNo
ApplicationExtra Heavy Duty Indust.
ApprovalsCSA, UL
AWG Range#18 AWG to #10 AWG
Blade MaterialNickel-Plated Brass
Body Length1.53 in
Body TypeStraight
BrandTwist-Lock, Hubbell
Cable range0.230 - 0.720 in
Cable Range0.230 - 0.720 in.
ColorYellow/White, Black, Ye.
Color - Plugs and Recep.Yellow
Color FamilyMulti
Connection OrientationStraight
ConnectivityPressure Terminal Screws
Contact MaterialBrass
Contact TypePin
Cord Diameter0.296 to 0.687 in
Cord range0.230 in-0.720 in(5.8-1.
Cord Size0.230 in to 0.720 in
Cord typeAll Listed Portables
Corrosion ResistantYes
Country of OriginUS - United States
Country of Origin (subj.United States
Current / amperage rati.15 A
Current Rating15 A
Current rating15 A
Current Stock22
Dielectric strengthWithstands 2,000V minim.
Dimensions1.53 in x 1.53 in x 1.9.
Display TypeStandard Sized
ECCNEAR99
Environmental conditionsIndoor Dry Unless Prote.
Family NameWatertight Devices Fami.
Family SeriesHubbell Plugs & Recepta.
For EnvironmentDry
For LocationIndoor
For Maximum Cable Diame.0.72 in
For Minimum Cable Diame.0.23 in
GradeIndustrial, Marine
Grade - Plugs and Recep.Industrial
Gross Weight0.05 lbs
GroundingGrounded
HBL47CM20CHBL47CM20C
Height1.97 in., 1.97 in
Horsepower Rating1/2 hp
Housing ColorWhite, Yellow
Housing MaterialNylon
HP0.5
Hubbell Wiring SystemsHubbell Wiring Systems
International ShippingNo
IP Rating20, IP20
Isolated GroundNo
ItemLocking Plug
Item - Plugs and Recept.Locking Plug
Item NumberHBL47CM20C
Lead TimeExpected to ship in 1-2.
Length1.53 in., 1.53 in
ManufacturerHubbell
Manufacturer Part NumberHBL47CM20C
MarketIndustrial
MaterialNylon
Material - mounting har.Cord Mounted
Max HP0.5
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size18 AWG
Mounting TypeCable
MpnHBL47CM20C
NEMA ConfigurationL5-15P
NEMA Plug ConfigurationL5-15P
NEMA Plug Configuration.L5-15P
Nema RatingL5-15P
NEMA TypeL5-15P
Net Weight0 lbs
NoNo
No. of Poles2
No. of Wires3
Number of Blades3
Number of Contacts3
Number of poles2-Pole
Number of Poles2
Number of Wires3
Number of wires3-Wire
Operating temperatureMaximum continuous 75C .
Outside Diameter1.527 in
Overall Length1.53 in
Phase1, Single phase
PolarizedYes
Primary TypeTwist Lock
Product HeaderTwist-Lock Replacement .
Rated Voltage125V
Resistance PropertiesChemical Resistant, Cor.
SeriesInsulgrip Series
ShroudedNo
Shrouded / Non-ShroudedNon-Shrouded
SKUZO-G5170733
Special FeaturesCorrosion resistant, Wa.
StandardCertified to CSA C22.2 .
StandardsUL/CSA
SubCategoryElectrical
TerminationScrew
TypePlugs, Locking Plug
UL 94 Flammability Rati.HB
UNSPSC39121402
UPC783585160504
UPC Code783585160504
Voltage125VAC, 125 V
Voltage - Plugs and Rec.125V AC
Voltage Rating125V AC, 125 V
Voltage rating descript.125 V
WatertightNo
Width1.53 in.
Width (in)1.53
Wire Connection TypeScrew Terminals
Wire Size10-18 AWG
Wire size#18 AWG to #10 AWG
Wiring StyleStandard
YesYes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL47CM20C17.2917HUBBELL17.29 @ 1
thumbzoomZoroG517073319.521In StockHubbell0.0519.52 @ 1
thumbzoominverterservicecenter.comHUBB-HBL47CM20C20.991In StockHubbell Wiring Systems20.99 @ 1
thumbzoomMRO Supply102341121.862In StockHubbell Wiring21.86 @ 2
thumbzoomGalcoHBL47CM20C-HBBL22.51In StockHubbell0.0522.5 @ 1
rvpartssource.comHUBB-HBL47CM20C23.50881In StockHubbell Wiring Systems0.0523.5088 @ 1
thumbzoomKelly HayesHBL47CM20C25.2115Hubbell Wiring Device-Kellems25.2 @ 1
steinerelectric.com9182425.321In StockHubbell Wiring Device-Kellems25.32 @ 1
AmazonTPB00GQQT38M26.521In Stock2Hubbell26.52 @ 1
thumbzoombow.com60887028.12122HUBBELL WIRING28.12 @ 1
thumbzoomfirstchoicemarine.comHUB-HBL47CM20C28.861In StockHubbell28.86 @ 1
thumbzoomsustainablesupply.comC117168229.211In StockHubbell0.0529.21 @ 1
thumbzoomRadwellHBL47CM20C30.018HUBBELL KELLEMS30.0 @ 1
thumbzoomsimsupply.comZO-G517073330.7122Hubbell30.7 @ 1
us.rs-online.com7011609834.8716Hubbell Wiring Device-Kellems34.87 @ 1
thumbzoomNewark94F950835.191In StockHUBBELL WIRING DEVICES35.19 @ 1
Graybar8812699335.20161In StockHubbell Wiring Device - Kellems35.2016 @ 1
thumbzoomRaptor SuppliesAF7LFG39.7106191In StockHUBBELL WIRING DEVICE-KELLEMS39.710619 @ 1
kirbyrisk.com50035746.021In StockHubbell46.02 @ 1
