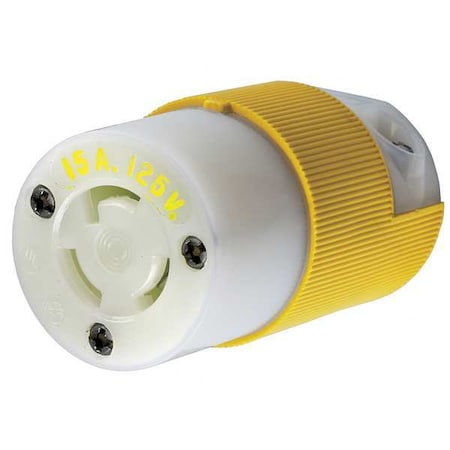

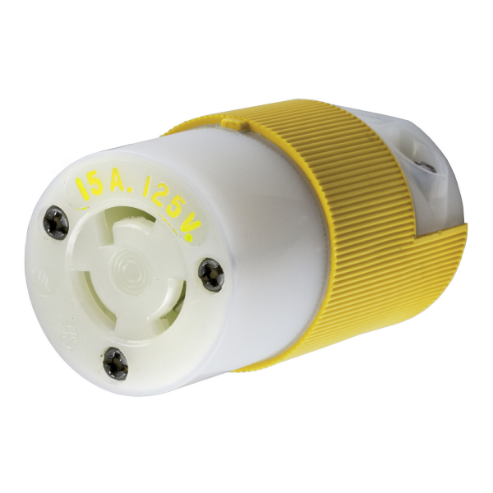

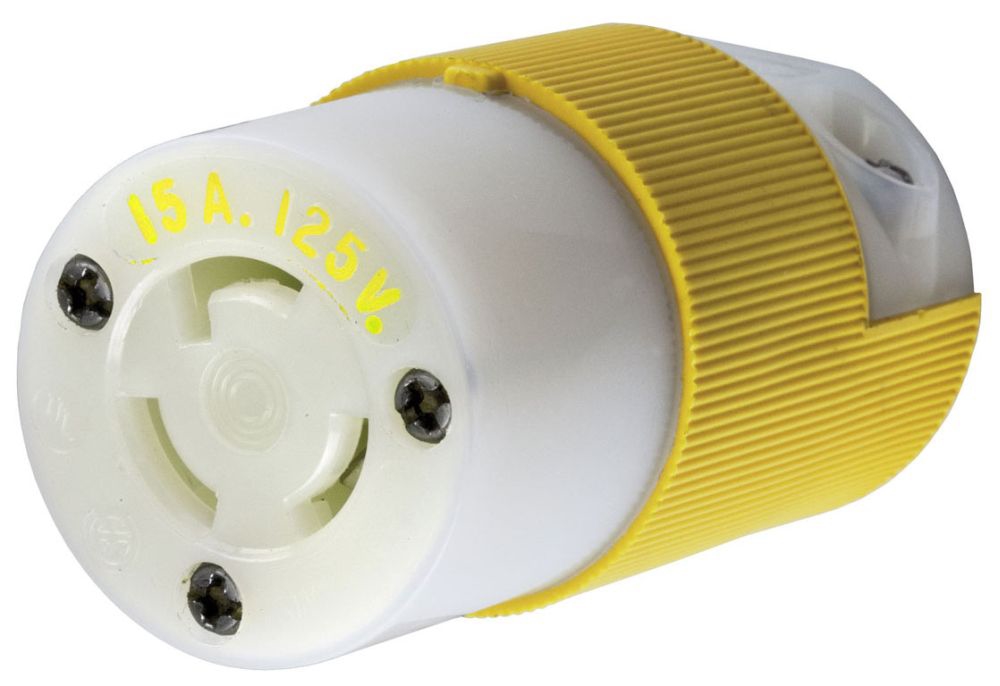

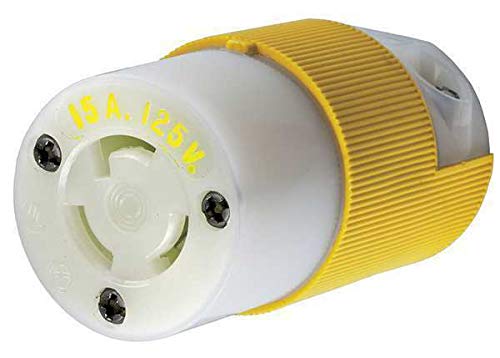

Hubbell HBL47CM29C

B076CBV8XG

Plug, 125Vac, 15A, L5-15C, 2P, 3W, 1Ph

Plug, 125Vac, 15A, L5-15C, 2P, 3W, 1Phzoom

Attributes

Key Value
0.20.2
0.2000000.200000
Amperage15 A
Amperage Rating15
Amps15
Amps - Plugs and Recept.15
AntimicrobialNo
ApprovalsCSA, UL
Body TypeStraight
BrandHubbell, Hubbell Wiring.
Cable range0.230 - 0.720 in
Cap TypeNo Cap or Cover
Catalog NumberHBL47CM29C
ColorBlack, Yellow
Color - Plugs and Recep.Yellow
Connection OrientationStraight
ConnectivityPressure Terminal Screws
Contact MaterialNickel-Plated Brass
Cord Diameter0.230 to 0.720 in
Cord range0.230 in-0.720 in(5.8-1.
Cord Size0.230 in to 0.720 in
Corrosion ResistantYes
Country of Origin (subj.United States
Current / amperage rati.15 A
Current Rating15 A
Current rating15 A
Current Stock22
Dielectric strengthWithstands 2,000V minim.
Dimensions1.53 in x 1.53 in x 2.7.
Environmental conditionsIndoor Dry Unless Prote.
Family SeriesHubbell Plugs & Recepta.
For EnvironmentDry
For LocationIndoor
For Maximum Cable Diame.0.72 in
For Minimum Cable Diame.0.23 in
GradeIndustrial
Grade - Plugs and Recep.Industrial
Gross Weight0.2 lbs
GroundingGrounded
GTIN00783585160702
HBL47CM29CHBL47CM29C
Height2.78 in
Horsepower Rating1/2 hp
Housing ColorYellow
Housing MaterialNylon
HP0.5
Hubbell Wiring SystemsHubbell Wiring Systems
Inner Diameter0.23-0.72 "
InsulationInsulated Body
International ShippingNo
IP Rating20
Isolated GroundNo
ItemLocking Connector
Item - Plugs and Recept.Locking Connector
Item NumberHBL47CM29C
Lead TimeExpected to ship in 1-2.
Length1.53 in, 2.78 in
ManufacturerHubbell Wiring Device-K.
Manufacturer Part NumberHBL47CM29C
MarketIndustrial
MaterialNylon
Material - mounting har.Cord Mounted
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size10 AWG
Midget LockingNo
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size18 AWG
MountingCord
MpnHBL47CM29C
NEMA ConfigurationL5-15R, L5-15P
NEMA Plug Configuration.L5-15P
Nema RatingL5-15R
NEMA Rating5
NEMA Receptacle Configu.L5-15R
Net Weight0 lbs
NoNo
Number of poles2-Pole
Number of Poles2
Number of Wires3
Number of wires3-Wire
Operating temperatureMaximum continuous 75C .
Operating Temperature-40 to 75 ?C
Outside Diameter1.527 in
Overall Length1.53 in
Phase1
Product HeaderTwist-Lock Chem-Marine .
Protection ClassConnector Body
Resistance PropertiesChemical Resistant, Imp.
ShroudedNo
Shrouded / Non-ShroudedNon-Shrouded
SKUZO-G5170715
Special FeaturesCorrosion Resistant, Tw.
StandardsUL Listed, CSA Certifie.
StyleChem/Marine
SubCategoryElectrical
Temperature rating-40 C w/o impact, -25 w.
TypeConnector Body
UL 94 Flammability Rati.HB
UPC783585160702
UPC Code783585160702
Voltage125VAC, 125 V
Voltage - Plugs and Rec.125V AC
Voltage Rating125V AC, 125
Voltage rating descript.125 V
WatertightNo
Weight0.2 lbs.
Width (in)1.53
Wire Connection TypeScrew Terminals
Wire size#18 AWG to #10 AWG
Wiring StyleStandard
YesYes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomfirstchoicemarine.comHUB-HBL47CM29C21.651In StockHubbell21.65 @ 1
Onlinecomponents.comHBL47CM29C29.9212HUBBELL29.92 @ 1
thumbzoomboatersland.comHUBHBL47CM29C29.991In StockHUBBELL29.99 @ 1
thumbzoomZoroG517071530.531In StockHubbell0.230.53 @ 1
thumbzoominverterservicecenter.comHUBB-HBL47CM29C35.991In StockHubbell Wiring Systems35.99 @ 1
thumbzoomMRO Supply102341338.51In StockHubbell Wiring38.5 @ 1
thumbzoomsimsupply.comZO-G517071538.82122Hubbell38.82 @ 1
thumbzoomgordonelectricsupply.comHBL47CM29C39.081In StockHUBBELL39.08 @ 1
rvpartssource.comHUBB-HBL47CM29C40.30881In StockHubbell Wiring Systems0.240.3088 @ 1
thumbzoomGalcoHBL47CM29C-HBBL43.121In StockHubbell0.243.12 @ 1
steinerelectric.com9182544.571In StockHubbell Wiring Device-Kellems44.57 @ 1
us.rs-online.com7011609946.271In StockHubbell Wiring Device-Kellems0.246.27 @ 1
thumbzoomRadwellHBL47CM29C48.011HUBBELL KELLEMS48.0 @ 1
thumbzoomsustainablesupply.comC117168349.081In StockHubbell0.249.08 @ 1
thumbzoombow.com60887149.415HUBBELL WIRING49.4 @ 1
Newark14C541453.11In StockHUBBELL WIRING DEVICES53.1 @ 1
thumbzoomcrescentelectric.com3668854.671In StockHubbell Wiring Device - Kellems54.67 @ 1
thumbzoomRaptor SuppliesAF7LFH77.97985651In StockHUBBELL WIRING DEVICE-KELLEMS77.9798565 @ 1
kirbyrisk.com49949681.061In StockHubbell81.06 @ 1
