Hubbell Wiring Device-Kellems HBL5252I

Hubbell Wiring Device-Kellems HBL5252I

mpn:
HBL5252I
brand:
HUBBELL WIRING DEVICE-KELLEMS
manufacturer:
HUBBELL WIRING DEVICE-KELLEMS
MPN:
HBL5252I
Weight:
0.01875
Weight:
1.0 LB
Preferred Price:
24.07
Price:
24.07
Min Simple Price:
12.98
Absolute Min Price:
18.75
Min Price:
18.75
Dimensions:
[4.0, 2.0, 2.0]
qty:
21
simpleSku:
MTQwNQ:::HBL5252I
sku:
MTQwNQ::7Z:HBL5252I@y0
condition:
11
seller:
Kelly Hayes
amzMan:
wiring device-kellems
HazMat:
False
DropShip:
False

Attributes

Key ^Value
Additional Electrical Protection, Additional Electrical ProtectionsStandard Protection
AFCI, Corrosion Resistant, GFCI, Illuminated, Isolated Ground, Multimedia Outlet, Power Indicator, Shrouded, Surge Protection, Surge Suppression, Tamper Resistant, USB, Weather Resistant, Weather Resistant - Plugs and ReceptaclesNo
Amperage Rating15A
Amperage, Amperage Rating, Amps - Plugs and Receptacles, Current / amperage rating, Current / Amperage Rating, Current rating, Current Rating15 A
Amps, Amps - Plugs and Receptacles15
Application Environment, Grade, MarketIndustrial
Application, CommentsExtra Heavy Duty Compact
ApprovalsCSA, UL
AWG Range, Wire Size, Wire size#14 AWG to #10 AWG
Brand, OEM Brand NameHubbell Wiring Device-Kellems
Carton Quantity10, 10 EA
ColorIvoire
Color, Color - Plugs and Receptacles, Color Family, Housing Color, Housing ColourIvory
Connection OrientationStraight
ConnectivityBack and Side Wired
Contact MaterialBrass
Contact TypeSocket
Country of OriginUS - United States
Country of Origin (subject to change)United States
Cover TypeNo Cover
Description, GroundGrounding
Dielectric strength, Dielectric StrengthWithstands 2,000V minimum
Dimensions3.28 in x 1.33 in x 1.05 in
Display Size, Display TypeStandard Sized Product
ECCNEAR99
Environmental Conditions, Environmental conditions, Environmental RatingIndoor Dry Unless Protected By Additional Means
Face Plate Height2.73 in
Face Plate Width, Width1.33 in
Family SeriesHubbell Plugs & Receptacles
Flange TypeNon-Flanged
For LocationIndoor
GradeFederal Specification
Gross Weight0.25 lbs
GroundingGrounded
Height1.05 in.
Height, Overall Depth1.05 in
Horsepower - Maximum, HP, Max HP, Maximum Horsepower0.5
Horsepower Rating, HP1/2 hp
Housing MaterialNylon
IncludesGrounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Includes Mounting Hardware, PolarizedYes
Item Number, Manufacturer Part NumberHBL5252I
Item, Item - Plugs and Receptacles, Product TypeReceptacle
Item, Item TypeTraditional Duplex
Key Resistance PropertiesStandard Resistance
Length3.28 in.
Length, Mount Hole Center-to-Center Height3.28 in
ManufacturerHubbell
MaterialNylon/Reinforced PET
Material - Mounting Hardware, Material - mounting hardware, Mounting Hardware MaterialScrew Mounting
Maximum Operating Temperature75 Degrees C, 75 Degrees C
Maximum Wire Size10 AWG
Minimum Operating Temperature-40 Degrees C, -40 Degrees C
Minimum Wire Size14 AWG
Mount Type, Mounting Type, Mounting Type - Plugs and ReceptaclesFlush
Mounting TypeTabs
NEMA Configuration5-15
NEMA Configuration, Nema Rating, NEMA Receptacle Configuration, NEMA Receptacle Configuration - Plugs and Receptacles, NEMA Type5-15R
NEMA Enclosure Rating, Number of Gangs, Phase1
Net Weight0 lbs
No. of Poles, Number of Poles2
No. of Wires, Number of Wires3
Number of Poles & Wires2 Pole / 3 Wire
Number Of Poles, Number of poles2-Pole
Number Of Wires, Number of wires3-Wire
Operating temperatureMaximum continuous 75C and minimum -40C without Impact
Operating TemperatureMaximum continuous 75?C and minimum -40?C without Impact
Outlet Type - Plugs and Receptacles, TypeStandard Duplex
Outlet Type, Receptacle TypeDuplex
PhaseSingle, Single Phase
Primary TypeStraight Blade
Rated Voltage, Voltage - Plugs and Receptacles, Voltage Rating125V AC
SeriesHeavy Duty
StandardCertified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C596G;NEMA? WD-6 Compliant;UL Listed to UL498 File No. E2186
StandardsUL/CSA/NEMA WD-1 and WD-6, CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186
StyleFinder Groove Face
Sub-CategoryDuplex Receptacles
TerminationScrew
TypeDuplex Receptacle
UL 94 Flammability RatingV-0
UNSPSC39121406
UPC783585000000, 783585434902
Voltage125VAC
Voltage Rating, Voltage rating description, Voltage Rating Description125 V
Voltage, Voltage Rating125 VAC
Wattage1875 W
Weight0.25 lb
Width1.33 in.
Width (in)1.33
Wire Connection Type, Wire Connection TypesScrew Terminals
Wire Size10-14 AWG
Wiring MethodBack, Side
Wiring Method - Plugs and ReceptaclesBack and Side

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomKelly HayesHBL5252I12.9883.072113Hubbell Wiring Device-Kellems12.98 @ Qty: 10+
grainger.caHBLHBL5252I13.9862816289.512202368110HUBBELL WIRING DEVICE-KELLEMS0.313.98628162 @ Qty: 10+
thumbzoommostelectric.comHBL5252I14.492.16134HUBBELL WIRING DEVICE/KELLEMS14.4 @ Qty: 10+
thumbzoomCarlton Bates Company7835854349015.096.0110HUBBELL15.0 @ Qty: 10+
LCOMP7835854349015.096.0110Hubbell Wiring Device-Kellems15.0 @ Qty: 10+
thumbzoomZoroG255092215.4498.816110Hubbell0.315.44 @ Qty: 10+
Onlinecomponents.comHBL5252I16.13109.684210Hubbell Wiring Device-Kellems16.13 @ Qty: 10+
Grainger4A25217.4111.3615210HUBBELL WIRING DEVICE-KELLEMS17.4 @ Qty: 10+
thumbzoomMRO Supply102371617.5119.0210Hubbell Wiring17.5 @ Qty: 10+
thumbzoomGalcoHBL5252I-HBBL18.01180.11010Hubbell0.2518.01 @ Qty: 10+
thumbzoombscsource.comHBL5252I18.09115.776110Hubbell Wiring Device-Kellems18.09 @ Qty: 10+
cbtcompany.comHBL5252I19.14122.496110Hubbell Wiring Device-Kellems19.14 @ Qty: 10+
thumbzoomsustainablesupply.comC278422219.88127.232110Hubbell0.319.88 @ Qty: 10+
steinerelectric.com2708720.17129.088110Hubbell Wiring Device-Kellems20.17 @ Qty: 10+
Graybar8812706321.896140.1344110Hubbell Wiring Device - Kellems21.896 @ Qty: 10+
AmazonTPB0106BW8R022.82146.0481103Hubbell Wiring Device-kellems22.82 @ Qty: 10+
thumbzoommayerelectric.comHUBHBL5252I23.66151.424110HUBBELL WIRING DEVICES0.2523.66 @ Qty: 10+
thumbzoomNational Supply Network5403375823.679151.5456110Hubbell Wiring Device-Kellems23.679 @ Qty: 10+
thumbzoomRadwellHBL5252I24.0153.6125HUBBELL KELLEMS24.0 @ Qty: 10+
us.rs-online.com7152853324.41156.224118Hubbell Wiring Device-Kellems24.41 @ Qty: 10+
kirbyrisk.com49045535.94230.016124Hubbell35.94 @ Qty: 10+
thumbzoomRaptor SuppliesAD6RNQ37.1071935237.4860384110HUBBELL WIRING DEVICE-KELLEMS37.1071935 @ Qty: 10+
thumbzoomgordonelectricsupply.comHBL5252I174.01113.6110HUBBELL174.0 @ Qty: 10+
standardelectricsupply.com18622175.01120.0110Hubbell175.0 @ Qty: 10+
B07NRZQK7Z
27.99 USD
Hubbell Wiring Device-Kellems HBL5252I

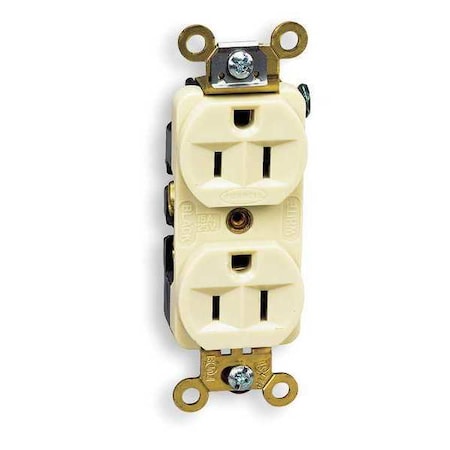

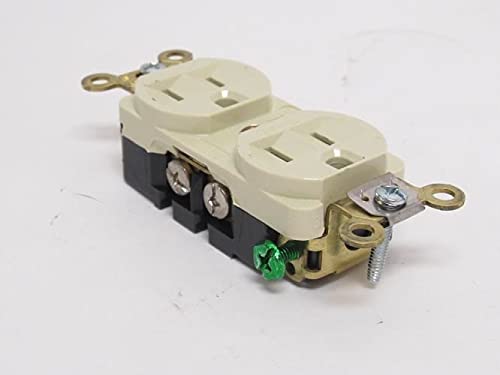

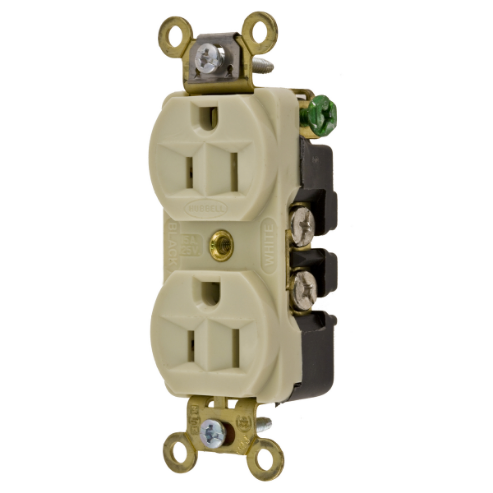

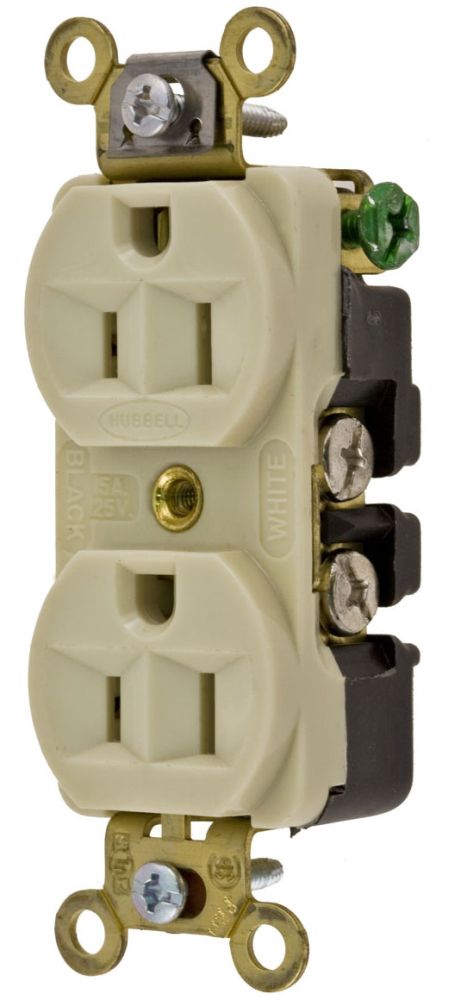

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Packzoom
