Hubbell HBL7413C

B000LETN4E

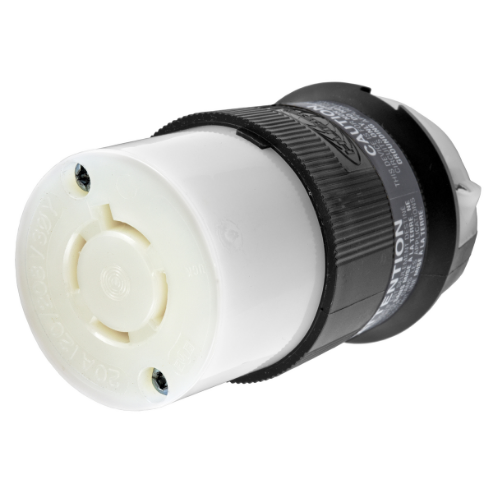

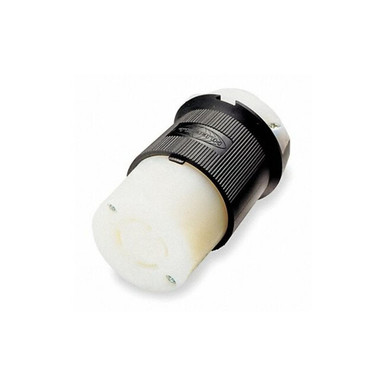

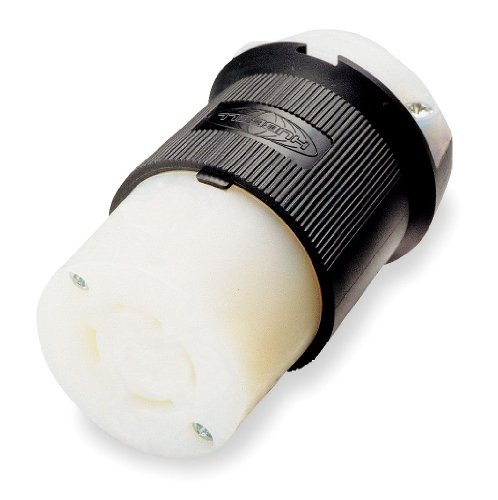

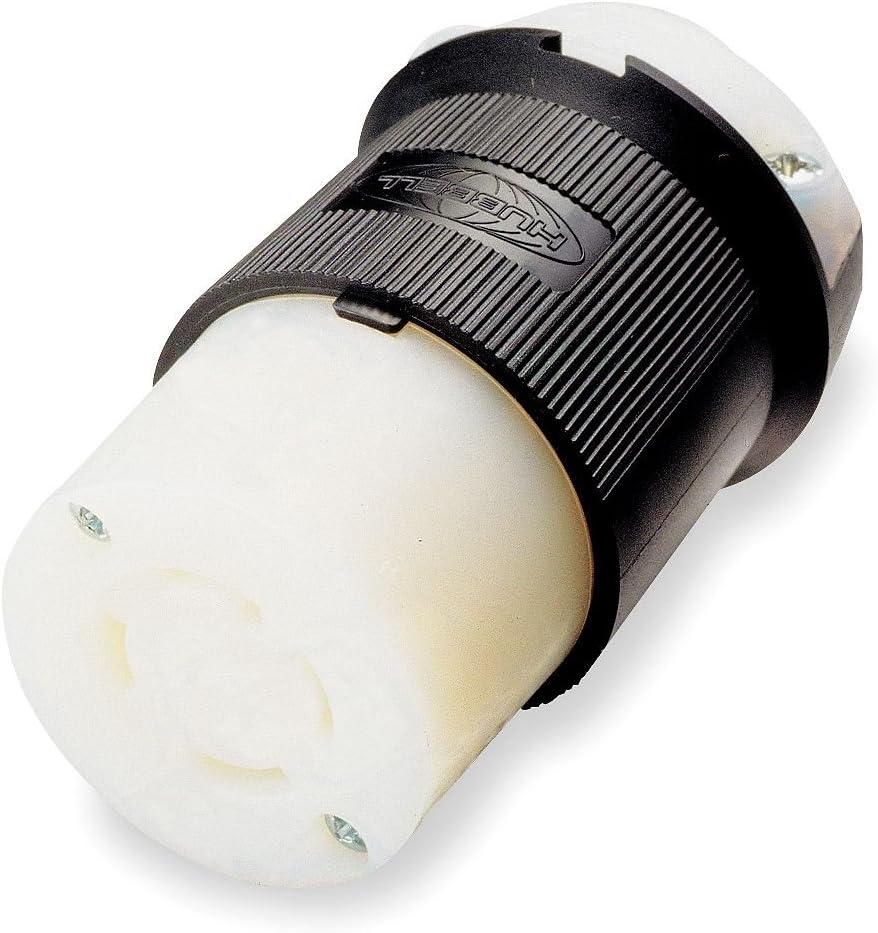

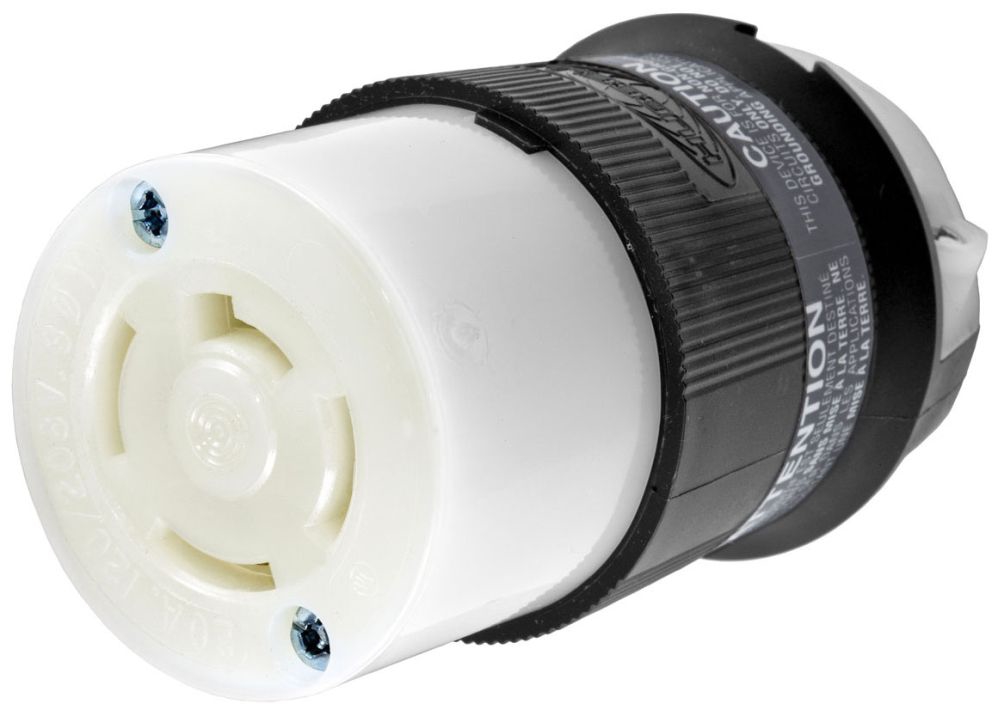

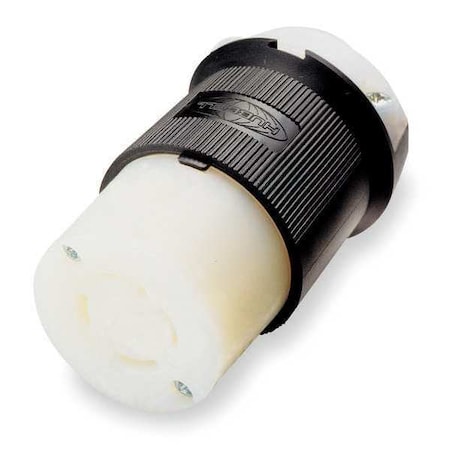

Hubbell HBL7413C AC Connector Non-NEMA 20a 4wire 120/208v

Hubbell HBL7413C AC Connector Non-NEMA 20a 4wire 120/208vzoom

Attributes

Key Value
Amperage20 A
Amperage Rating20A, 20
Amps20
Amps - Plugs and Recept.20
AntimicrobialNo
ApplicationHeavy Duty Industrial
ASINB000LETN4E
AWG Range#16 AWG to #8 AWG
Batteries Included?No
Batteries Required?No
Body TypeStraight
BrandTwist-Lock, Hubbell, Hu.
Cable Range0.350 - 1.150 in.
Cable range0.350 - 1.150 in
Cap TypeNo Cap or Cover
Catalog NumberHBL7413C
ColorBlack/White, White, Bla.
Color - Plugs and Recep.Black/White
Color FamilyMulti
Conductor Range#14AWG to #12AWG
ConnectionPressure Screw Terminal
Connection OrientationStraight
ConnectivityPressure Terminal Screws
Contact MaterialBrass
Cord dia35 in-1.15 in
Cord range0.350 in-1.150 in (9-29)
Cord Size0.350 in to 1.150 in, 0.
Corrosion ResistantNo
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Cross Reference Products7413-C
Current / amperage rati.20 A
Current Rating20 A
Current rating20 A
Current Stock97
Dielectric strengthWithstands 2,000V minim.
Dimensions2.33 in x 2.33 in x 3.8.
Display TypeStandard
ECCNEAR99
Environmental ConditionsIndoor Dry Unless Prote.
Environmental conditionsIndoor Dry Unless Prote.
Family SeriesHubbell Plugs & Recepta.
For EnvironmentDry
For LocationIndoor
For Maximum Cable Diame.1.15 in
For Minimum Cable Diame.0.35 in
GradeIndustrial, Industrial/.
Grade - Plugs and Recep.Industrial
Gross Weight0.42 lbs
GroundingNon-Grounded
GTIN00783585037585
Height3.86 in, 3.86 in.
Horsepower Rating1 hp
Housing ColorBlack, White
Housing MaterialNylon
InsulationInsulated Body
International ShippingNo
IP Rating20
Isolated GroundNo
ItemConnector, Locking Conn.
Item - Plugs and Recept.Locking Connector
Item model numberHBL7413C
Item NumberHBL7413C
Item Package Quantity1
Item TypeConnector Body
Lead TimeExpected to ship in 1-2.
Length2.33 in, 2.33 in.
Made in USAYes
ManufacturerHubbell Wiring Device-K.
Manufacturer Part NumberHBL7413C
MarketIndustrial
MaterialNylon
Material - mounting har.Cord Mounted
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size8 AWG
Measurement Systeminch
Midget LockingNo
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size16 AWG
MountingCord
MpnHBL7413C
NEMA ConfigurationNon-NEMA
NEMA Plug Configuration.20A, Non-NEMA
Nema RatingNon-NEMA
NEMA Receptacle Configu.Non-NEMA
Net Weight0.38 lbs
No. of Poles4
No. of Wires4
Number of Conductors4-Wire Non-Grounding
Number of poles4-Pole
Number of Poles4
Number of Wires4
Number of wires4-Wire
Operating temperatureMaximum continuous 75C .
Outside Diameter2.33 in
Overall Length2.33 in
Part NumberHBL7413C
Phase3, Three phase
Power Indicating LightNo
Power IndicatorNo
Rated Voltage120/208V AC
Resistance PropertiesChemical Resistant, Imp.
ShroudedNo
Shrouded / Non-ShroudedNon-Shrouded
SizeSmall, 2.33 in x 2.33 i.
SKUZO-G0626577
Special FeaturesStandard Product
StandardUL498
StandardsUL, CSA, UL/CSA
Sub BrandTwist-Lock
SubCategoryElectrical
Temperature RatingMaximum Continuous: 75?.
Temperature rating-40 C w/o impact, -25 w.
TypeConnector Body
UL 94 Flammability Rati.HB
UNSPSC39121421
UPC783585037585
Voltage120/208VAC, 3 Phase WYE.
Voltage - Plugs and Rec.120/208V AC
Voltage Rating120/208V AC
Voltage rating descript.3 Phase WYE 120/208 VAC
WatertightNo
Width2.33 in.
Width (in)2.33
Wire Connection TypeScrew Terminals
Wire size#16 AWG to #8 AWG
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caHBLHBL7413C25.564398561In StockHUBBELL WIRING DEVICE-KELLEMS0.425.56439856 @ 1
thumbzoomAmazonSCB000LETN4E47.381In StockHubbell0.447.38 @ 1
thumbzoomKelly HayesHBL7413C47.6194Hubbell Wiring Device-Kellems47.6 @ 1
thumbzoomZoroG062657748.991In StockHubbell0.448.99 @ 1
AmazonTPB005PZSHX251.131In Stock10Hubbell51.13 @ 1
Onlinecomponents.comHBL7413C60.011Hubbell Wiring Device-Kellems60.0 @ 1
thumbzoomCarlton Bates Company7835850375862.41In StockHUBBELL62.4 @ 1
LCOMP7835850375862.41In StockHubbell Wiring Device-Kellems62.4 @ 1
thumbzoomMRO Supply102529064.211In StockHubbell Wiring64.21 @ 1
standardelectricsupply.com9465964.211In StockHubbell64.21 @ 1
thumbzoomsimsupply.comZO-G062657765.13197Hubbell65.13 @ 1
thumbzoomgordonelectricsupply.comHBL7413C65.181In StockHUBBELL65.18 @ 1
thumbzoomGalcoHBL7413C-HBBL71.921In StockHubbell0.4271.92 @ 1
steinerelectric.com2627372.331In StockHubbell Wiring Device-Kellems72.33 @ 1
thumbzoombscsource.comHBL7413C74.591In StockHubbell Wiring Device-Kellems74.59 @ 1
Graybar8812750080.32641In StockHubbell Wiring Device - Kellems80.3264 @ 1
thumbzoomNational Supply Network5403504390.031In StockHubbell Wiring Device-Kellems90.03 @ 1
thumbzoomcrescentelectric.com5731291.181In StockHubbell Wiring Device - Kellems91.18 @ 1
thumbzoomUnited Electric10541899.01In StockWIRING DEVICE-KELLEMS99.0 @ 1
us.rs-online.com71528573102.2413Hubbell Wiring Device-Kellems102.24 @ 1
thumbzoomNewark70B4388104.741In StockHUBBELL WIRING DEVICES104.74 @ 1
thumbzoomRaptor SuppliesAE7ZHY116.12618551In StockHUBBELL WIRING DEVICE-KELLEMS116.1261855 @ 1
kirbyrisk.com484069126.714Hubbell126.7 @ 1
