Hubbell Wiring Systems HBLMRBK

B000L9QXME

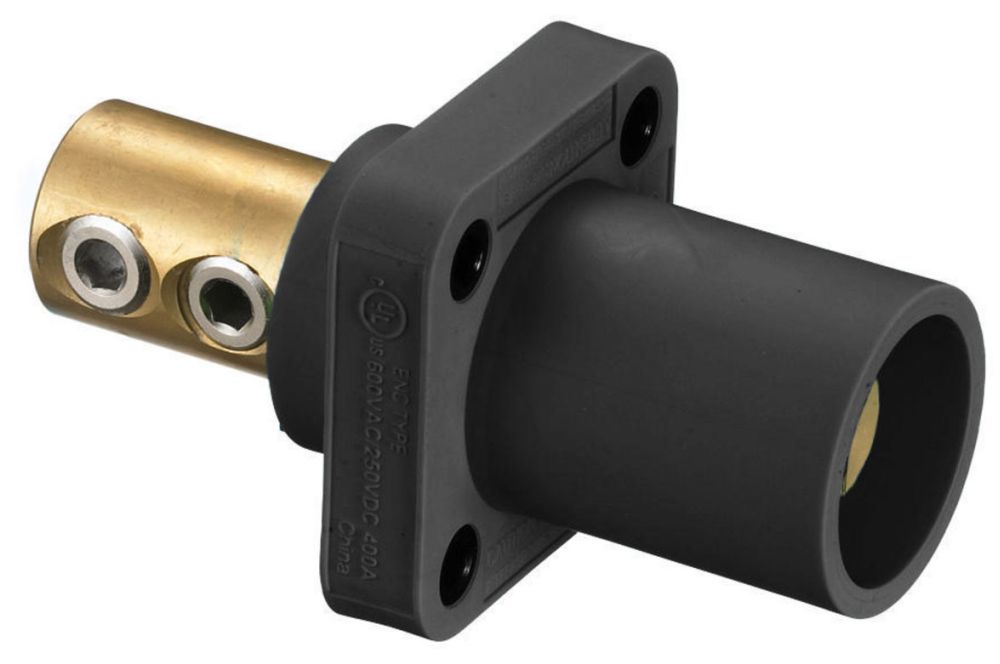

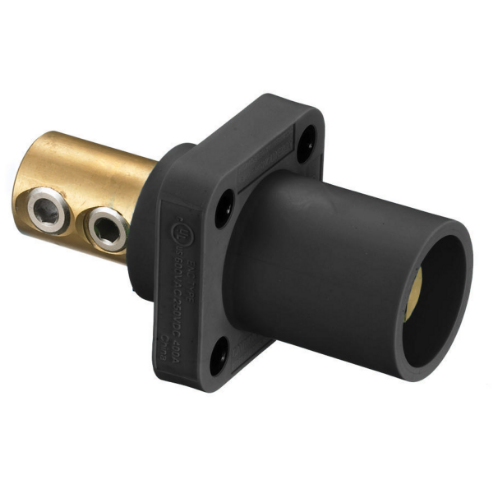

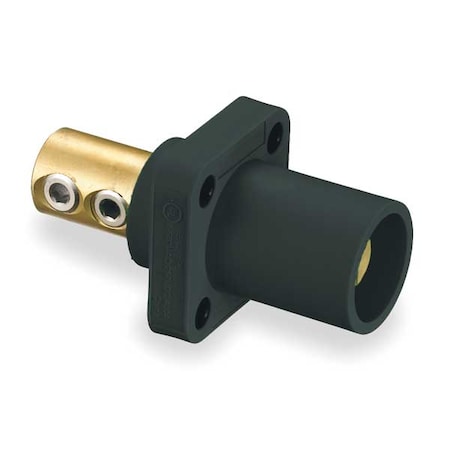

Hubbell Wiring Systems HBLMRBK TPE Single Pole Panel Mount Male Receptacle, Double Set Screw, 4-4/0 Cable Size, 400 Amp, 4-3/16" Length, Black

Hubbell Wiring Systems HBLMRBK TPE Single Pole Panel Mount Male Receptacle, Double Set Screw, 4-4/0 Cable Size, 400 Amp, 4-3/16" Length, Blackzoom

Attributes

Key Value
Amperage400 A
Amperage Rating400A
Amps AC/DC400AC/DC
ApplicationHigh Ampacity Connectio.
ApprovalscUL, NEC, UL
AWG Range#4 AWG to #4/0 AWG
Cable Attachment MethodDouble Set Screw
Cable Gauge4 to 4/0 AWG
Cable Range4 to 4/0
Cable Size#4-4/0
Cable Size (AWG)4 AWG, 3 AWG, 2 AWG, 1 .
ColorBlack
Color FamilyBlack
Compatible with Series16
Conductor MaterialBrass
Connection DescriptionMale
Connection OrientationStraight
ConnectivityScrew terminals
Connector ColorBlack
Contact MaterialBrass
Country of OriginCN - China
Country of Origin (subj.China
Current / amperage rati.400 A
Current Rating400 A
Current rating400 A
Display TypeStandard Sized Product
ECCNEAR99
End TypeTaper Nose
Environmental conditionsIndoor Dry Unless Prote.
Family SeriesHubbell Connectors, 16 .
Flange ShapeSquare
For LocationIndoor
GenderMale
Gross Weight0.7 lbs
Housing ColorBlack
Housing ColourBlack
Housing MaterialThermoplastic Elastomer
Includes Mounting Hardw.Yes
Insulator MaterialThermoplastic Elastomer.
ItemMale Receptacle, Recept.
Item NumberHBLMRBK
Male/FemaleMale
ManufacturerHubbell
Manufacturer Part NumberHBLMRBK
MaterialThermoplastic Elastomer.
Material - mounting har.Screw Mounting
Maximum Wire Size4/0 AWG
Minimum Wire Size4 AWG
MountingPanel
Mounting StyleThrough Hole Mounting
NEMA Enclosure Rating12, 3R, 4X
Nema RatingNon-NEMA
NEMA Rating12K, 3R, 4X
Net Weight0 lbs
No. of Poles1
Number of poles1-Pole
Overall Length4.1 in
Overall Width4.1 in
PhaseSingle, Single phase
Product Series16
Product TypeReceptacle
Receptacle GenderFor Female Connectors
SeriesSinglepole Series, 16
Single Pole Device StyleTaper Nose
StandardNational Electric Code .
StandardsUL/cUL, UL, cUL
StyleDouble Set Screw Male
Terminal ConnectionDouble Set Screw
Terminal Connection TypeDouble Set Screw
TypeReceptacle
UL 94 Flammability Rati.HB
UNSPSC39121406
UPC Code783585112930
Voltage600 VAC
Voltage Rating600V AC/250V DC
Voltage rating descript.600V AC/DC
Wattage240000
Wire size#4 AWG to #4/0 AWG
Wire Size Range4 AWG - 4/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBLMRBK39.611In StockHubbell39.61 @ 1
thumbzoomZoroG128991546.011In StockHubbell0.7546.01 @ 1
grainger.caWWG2XB6551.118516581In StockHUBBELL WIRING DEVICE-KELLEMS0.7551.11851658 @ 1
AmazonTPB000L9QXME54.771In Stock10Hubbell Wiring Device-Kellems54.77 @ 1
standardelectricsupply.com226792655.071583Hubbell55.07 @ 1
thumbzoomMRO Supply102695755.071In StockHubbell Wiring55.07 @ 1
thumbzoomgordonelectricsupply.comHBLMRBK55.91In StockHUBBELL55.9 @ 1
thumbzoomGalcoHBLMRBK-HBBL56.691In StockHubbell0.756.69 @ 1
thumbzoomNewark46M313561.31In StockHUBBELL WIRING DEVICES61.3 @ 1
thumbzoomNational Supply Network4316047264.041In StockHubbell Wiring Device-Kellems64.04 @ 1
steinerelectric.com24607365.911In StockHubbell Wiring Device-Kellems65.91 @ 1
us.rs-online.com7057497267.2511Hubbell Wiring Device-Kellems67.25 @ 1
Graybar2504440968.89121In StockHubbell Wiring Device - Kellems68.8912 @ 1
thumbzoomRaptor SuppliesAC3XAW93.2987251In StockHUBBELL WIRING DEVICE-KELLEMS93.298725 @ 1
kirbyrisk.com2023657136.081In StockHubbell136.08 @ 1
