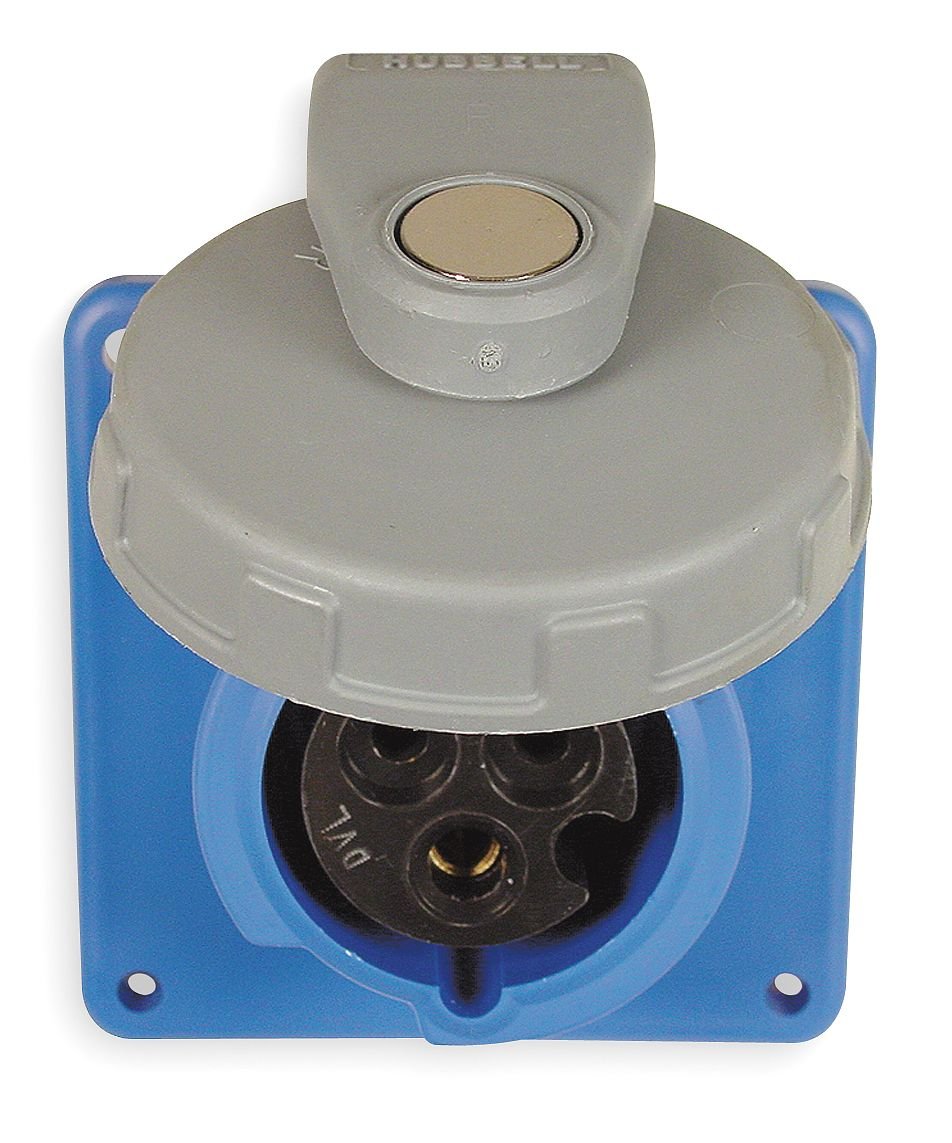

Hubbell Wiring Device-Kellems HBL320R6W

IEC Nonmetallic Watertight Pin and Sleeve Devices Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating. This listing is for each. Product Specification Amperage Rating 20 North mericn Application High Ampacity Watertight Connections Brand Hubbell Wiring Device-Kellems Catalog Description Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Receptacle, 20A 250V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Blue, Watertight Connection Pressure Screw Terminals Finish 2 Blue Height 4.0600 Height Unit IN Item Status A Length 4.4300 Length UOM IN Material Thermoplastic Mfr. # HBL320R6W Mounting Screw Mount NEMA Rating Non-NEMA Number Of Poles 2 Number of Wires 3 Phase 1 Size Standard Sized Product Special Features Watertight Standard UL 498, IEC 309-1 and 309-2 Sub-Brand IEC 309 Pin and Sleeve Devices Type Single Flanged Voltage Rating 250 Wattage 5, 000 Width 4.3700 Width UOM IN Wire Size #14 AWG To #10 AWG
