mpn:
manufacturer:
MPN:
Description:

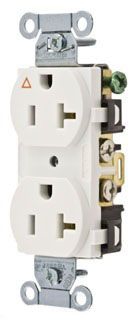

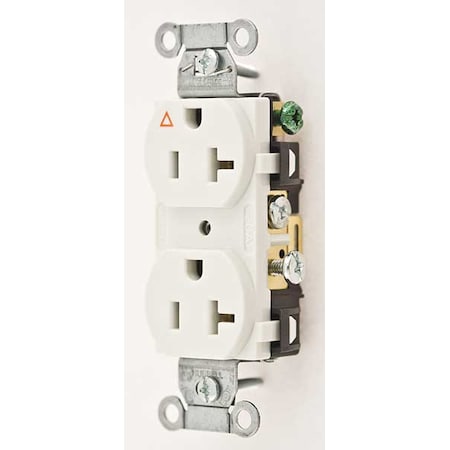

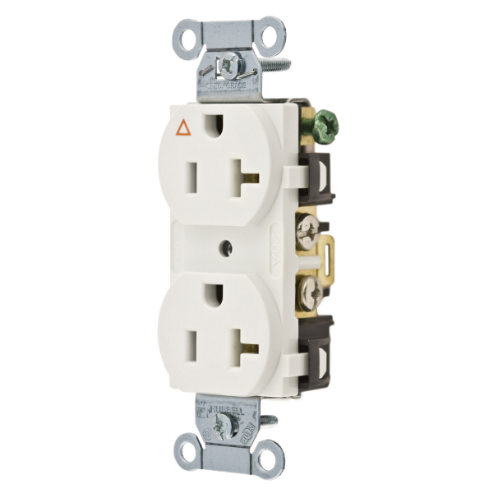

Straight Receptacle, Duplex, 20A 125V, Side Wired, White | AD7PJT | Worldwide Delivery | +44 203 287 5224 | sales@raptorsupplies.com
Attributes
| Key ^ | Value |
|---|---|
| Accessory Group, Boot Code | - |
| Additional Electrical Protection, Additional Features, Grounding, Special Features | Isolated Ground |
| Additional Electrical Protections | Isolated Grounding |
| AFCI, Corrosion Resistant, GFCI, Illuminated, Multimedia Outlet, Power Indicator, Shrouded, Surge Protection, Surge Suppression, Tamper Resistant, USB, Weather Resistant, Weather Resistant - Plugs and Receptacles | No |
| Amperage Rating | 20A |
| Amperage, Amps - Plugs and Receptacles, Current / amperage rating, Current rating, Current Rating | 20 A |
| Amps, Amps - Plugs and Receptacles | 20 |
| Application Environment, Market | Commercial |
| Application, Comments, Series | Commercial Specification Grade |
| Approvals | CSA, UL |
| AWG Range, Wire Size, Wire size | #12 AWG to #10 AWG |
| Brand, OEM brand name | Hubbell Wiring Device-Kellems |
| Carton Quantity | 10 |
| Color, Color - Plugs and Receptacles, Color Family, Housing Color | White |
| Connection Orientation | Straight |
| Connection Type | Duplex Receptacle |
| Connectivity | Side Wired |
| Contact Material | Brass |
| Country of Origin | CN - China |
| Country of Origin (subject to change) | China |
| Cover Type | No Cover |
| Current Rating | 15 A |
| Description | Smooth |
| Dielectric strength, Dielectric Strength | Withstands 2,000V minimum |
| Dimenions | 1.32 in. x 1.06 in. x 3.28 in. |
| Dimensions | 1.32 in x 1.06 in x 3.28 in |
| Display Size, Display size, Display Type | Standard Sized Product |
| ECCN | EAR99 |
| Environmental conditions | Indoor Dry Unless Protected By Additional Means |
| Face Plate Height | 2.73 in |
| Face Plate Width | 1.33 in |
| Family Series | Hubbell Plugs & Receptacles |
| Flange Type | Non-Flanged |
| For Location | Indoor |
| Grade | Federal Specification |
| Gross Weight | 0.15 lbs |
| Height, Mount Hole Center-to-Center Height, Overall Depth | 3.28 in |
| Horsepower Rating, HP | 1 hp |
| Housing Material, Material | Nylon |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover |
| Includes Mounting Hardware, Isolated Ground, Isolated Grounding, Polarized | Yes |
| Item - Plugs and Receptacles | Isolated Ground Receptacle |
| Item Number, Manufacturer Part Number | IG20CRWHI |
| Item, Item type | Traditional Duplex |
| Key Resistance Properties, Resistance Properties | Corrosion Resistant |
| Length | 1.32 in |
| Manufacturer | Hubbell |
| Material - mounting hardware | Screw Mounting |
| Max HP, Maximum Horsepower, NEMA Enclosure Rating, Number of Gangs, Phase | 1 |
| Maximum Operating Temperature | 75 Degrees C |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40 Degrees C |
| Minimum Wire Size | 12 AWG |
| Mount Type, Mounting Type, Mounting Type - Plugs and Receptacles | Flush |
| NEMA Configuration | 5-20, 5-15R |
| Nema Rating, NEMA Receptacle Configuration, NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Net Weight | 0 lbs |
| No. of Poles, Number of Poles | 2 |
| No. of Wires, Number of Wires | 3 |
| Number of Poles & Wires | 2 Pole / 3 Wire |
| Number Of Poles, Number of poles | 2-Pole |
| Number Of Wires, Number of wires | 3-Wire |
| Operating temperature | Maximum continuous 75C and minimum -40C without Impact |
| Outlet Type - Plugs and Receptacles, Type | Standard Duplex |
| Outlet Type, Receptacle Type | Duplex |
| Phase | Single Phase |
| Primary Resistance Properties | Corrosion Resistant - Corrosion Resistant - 20 A |
| Product Type | Receptacle |
| Rated Voltage | 125V |
| Receptacle Type | Straight Blade |
| Standard | Certified to CSA C22.2, No. 42;Fed. Spec. W-C-596;NEMA? WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 |
| Style | Smooth Face |
| Sub-Category | Duplex Receptacles |
| UL 94 Flammability Rating | V-2 |
| UNSPSC | 39121406 |
| Voltage | 125VAC, 125 VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| Voltage, Voltage Rating, Voltage rating description | 125 V |
| Wattage | 2500 W |
| Width (in) | 1.06 |
| Wire Connection Type, Wire Connection Types | Screw Terminals |
| Wiring Method, Wiring Method - Plugs and Receptacles | Side |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | gordonelectricsupply.com | IG20CRWHI | 6.81 | 43.584 | 1 | 10 | HUBBELL | 6.81 @ Qty: 10+ | ||
| Onlinecomponents.com | IG20CRWHI | 6.82 | 43.648 | 1 | 10 | Hubbell | 6.82 @ Qty: 10+ | |||
 | Zoro | G1381055 | 7.13 | 45.632 | 1 | 10 | Hubbell | 1.75 | 7.13 @ Qty: 10+ | |
 | Galco | IG20CRWHI-HBBL | 8.86 | 56.704 | 1 | 10 | Hubbell | 0.15 | 8.86 @ Qty: 10+ | |
 | MRO Supply | 1029777 | 8.86 | 67.336 | 4 | 10 | Hubbell Wiring | 8.86 @ Qty: 10+ | ||
| steinerelectric.com | 986832 | 11.2 | 71.68 | 1 | 10 | Hubbell Wiring Device-Kellems | 11.2 @ Qty: 10+ | |||
| Grainger | 4FTW8 | 12.42 | 79.488 | 1 | 259 | 0 | HUBBELL WIRING DEVICE-KELLEMS | 12.42 @ Qty: 10+ | ||
| Graybar | 25195539 | 13.2944 | 85.08416 | 1 | 10 | Hubbell Wiring Device - Kellems | 13.2944 @ Qty: 10+ | |||
| kirbyrisk.com | 2278750 | 14.55 | 93.12 | 1 | 10 | Hubbell | 14.55 @ Qty: 10+ | |||
| Newark | 93Y9177 | 14.7 | 94.08 | 1 | 10 | HUBBELL WIRING DEVICES | 14.7 @ Qty: 10+ | |||
 | Raptor Supplies | AD7PJT | 17.140149 | 109.6969536 | 1 | 10 | HUBBELL WIRING DEVICE-KELLEMS | 17.140149 @ Qty: 10+ |
