Attributes
| Key | Value |
|---|---|
| AFCI | No |
| Amperage Rating | 20 A |
| Approvals | CSA, UL |
| Availability | Expected to ship in 1-2 business days |
| Brand | Hubbell |
| Class Code | A08 |
| Color | Black |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Corrosion Resistant | No |
| Country of Origin | CN |
| Country of Origin (subject to change) | China |
| Cover Type | No Cover |
| Current Rating | 20 A |
| Dimensions | 3.28 in x 1.7 in x 1.468 in |
| Each - Height | 2.400 in |
| Each - Length | 4.000 in |
| Each - Width | 2.400 in |
| Face Diameter | 1.56 in |
| Face Plate Height | 2.77 in |
| Face Plate Width | 1.7 in |
| Family Series | Hubbell Plugs & Receptacles, Twist-Lock Edge Series |
| Flange Diameter | Not Applicable |
| Flange Height | Not Applicable |
| Flange Type | Non-Flanged |
| Flange Width | Not Applicable |
| Freight Class Code | 06168002 |
| Gross Weight | 0.325 lbs |
| Grounding | Grounded |
| Harmonization Code | 8536698000 |
| Height | 1.468 in |
| Housing Color | Black |
| Housing Material | Nylon |
| Image Actual Or Representative | A |
| Includes | Mounting Strap |
| Includes Mounting Hardware | Yes |
| International Shipping | No |
| Isolated Ground | No |

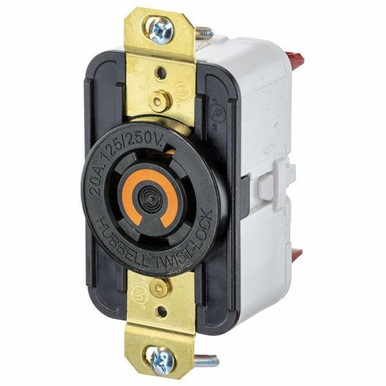

| Item | Locking Receptacle |
| Item Number | HBL2410ST |
| Length | 3.28 in |
| Manufacturer | Hubbell |
| Manufacturer Part Number | HBL2410ST-HBBL |
| Maximum Operating Temperature | 75 Degrees C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40 Degrees C |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-Center Height | 3.28 in |
| Mount Type | Flush |
| Mpn | HBL2410ST |
| MSDS Flag | No |
| NEMA Configuration | L14-20R |
| NEMA Enclosure Rating | 1 |
| NEMA Receptacle Configuration | L14-20R |
| Net Weight | 0.265 lbs |
| Number of Gangs | 1 |
| Number Of Poles | 3 |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Number Of Wires | 4 |
| Overall Depth | 1.468 in |
| Polarized | Yes |
| Product Series | Twist-Lock Edge |
| Promotion Restriction | Not eligible for promotion |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Size | 3.28 in x 1.7 in x 1.468 in |
| SKU | ZO-G806171345 |
| Sub Class Code | A08A110 |
| SubCategory | Electrical |
| UL 94 Flammability Rating | V-2 |
| UPC | 783585788593 |
| Voltage | 250 VAC, 125 VAC |
| Voltage Rating | 125/250 V, 125/250V AC |
| Watertight | No |
| Width | 1.7 in |
| Wire Size | 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded) |
