Ideal 46-607
Idealzoom

Ideal 46-607

mpn:
46-607
brand:
name: Ideal
manufacturer:
name: Ideal
MPN:
46-607
Description:

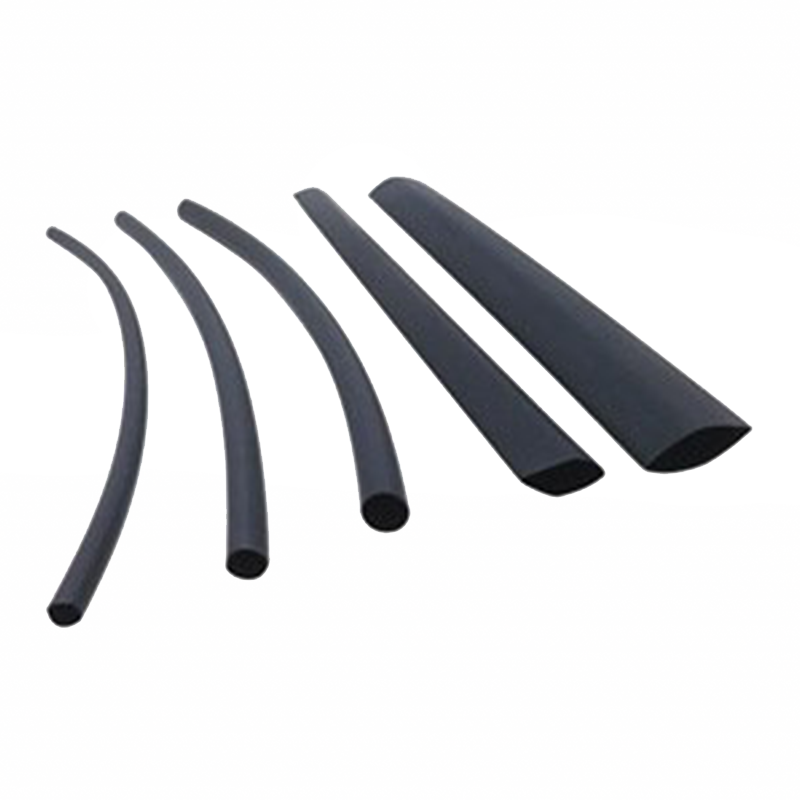

Heat Shrink Tubing, Thin Wall, Material Polyolefin, Flexible, Flame Retardant Yes, Adhesive Lined No, Shrink Ratio 2:1, Use With Wire Size 8 AWG to 4 AWG, I.D. Before Shrinking 0.42 in, I.D. After Shrinking 0.19 in, Wall Thickness After Shrinking 0.02 in, Length 4 ft, Shrink Tubing Properties UV Light Resistant, Color Black, Temp. Range -55 Degrees to 125 Degrees F, Package Style Individual Pieces, Min. Shrink Temp. 158 Degrees F, Dielectric Strength 600 V, Max. Temp. Rating 125 Degrees F

Attributes

Key ^Value
46-607Stock Code
783250466078UPC
Allowable Gauge Range7 - 4
Brand, ManufacturerIDEAL
Cable Range AWG8-4
Catalog Number, MFG Part #:, Mpn, Part Number46-607
CategoryHeat Shrinkable Tube
Color, Color FamilyBlack
Continuous Operating Temperature:, Temperature Rating-55 To 125 DEG C
Country of OriginUS - United States, China, CHN
Current Stock3
Description:Ideal 46-607 Thin-Wall Heat Shrink Tubing - .421" X 4"
Diameter, Inside Diameter:3/8 IN
Dielectric Strength:ASTM D 150, 20 KV/MM
ECCNEAR99
Expanded I.D. (Min.)0.421"/10.7mm
FeaturesHighly flame-retardant and flexible and resistant to common fluids and solvents, Electrically insulates and protects in-line components/disconnect terminals/splices with its high strength and excellent resilience, Flame Retardant, Flexible
Flame RetardantYes
For additional options and special quantity discounts, please contact our sales department 1-(855)-296-9508 x 101 or send email to cs@bulbspro.comNotes
Heat Shock:UL 224, No Cracking (250 DEG C/4 HR)
Heat Shrink Length4 ft.
Heat Shrink Length: 4 ft.Length (in)
Heat Shrink Type: Thin-WallType
I.D. After Shrinking0.19 in
I.D. Before Shrinking0.42 in
IDEAL IndustriesBrand
Inner Diameter3/8 in.
Inner Diameter Expanded, Shrink Tubing I.D. Before Shrinking0.421 in
Inner Diameter Recovered0.185 in
Inside Diameter44628
International Shipping, Made in USA, Shrink Tubing Adhesive LinedNo
Item Type, Type:Thin-Wall
Item, Shrink Tubing TypeHeat Shrink Tubing
Lead TimeExpected to ship in 1-2 business days
Length4', 48 in., 4 ft, 48 in, 4
Length (Pkg.)4 ft. (Disk)
Length UOMFoot
Length, Length (Straight Wireway), Length:, Shrink Tubing Length4 ft
ManufacturerIdeal Industries
Manufacturer, Supplier:Ideal Industries, Inc.
Material, Shrink Tubing MaterialPolyolefin
Max. Voltage600 V
Min. Shrink Temp.158 Degrees F
Minimum Shrink Temperature:, Shrink Temperature70 DEG C
Nominal Recovered I.D. (Max.)0.185"/4.7mm
Normal Size (in.)3/8
Packaging4 Foot Disk
Product TypeHeat Shrink
Recovered Wall Thickness +/- 10%0.022"/0.56mm
Series46 Series
Shrink Ratio2:01
Shrink Ratio, Shrink Ratio:2:1
Shrink Tube Material TypeFlexible
Shrink Tubing Usable Temp. Range-55 Degrees to 125 Degrees F
Shrink Tubing Wall Thickness After Shrinking, Wall Thickness Recovered0.022 in
Shrink Tubing Wall TypeThin Wall
Size3/8" ID
SKUZO-G5363915
Special FeaturesFeatures: Polyolefin material electrically insulates and protects in-line components, disconnect terminals and splices with its high strength and excellent resilience; Use to bundle wires for very flexible light-duty harnesses; Highly flame-retardant and flexible; Resistant to common fluids and solvents; Meets UL 486D 125 Degrees C VW-1 600V; Material: No PBBs, PBBEs, conforms to ROHS;; Cable Range: 8 - 4 AWG; Nominal Recoveredi.d. (max.): 0.185 IN; Expanded I.d. (min.): 0.421; Elongation At Break: 600 PCT ASTM D 638; Elongation Of Break After Aging: 350 PCT For UL 224 Test Method; Cold Bend Test (-55 Degrees c/4 Hours): No Cracking For UL 224 Test Method; Copper Corrosion: Pass For UL 224 Test Method; Chemical Resistance: Pass For UL 224 Test Method; Longitudinal Shrinkage: 0 Plus Or Minus 5 PCT For UL 224 Test Method; Eccentricity: 30 PCT For UL 224 Test Method; Normal Size: 3/8 IN; Package: Disk
Standard, Standard:C/US RU Listed,RoHS
StandardsRoHS, UL 486D
Sub Brand, Sub Brand:Thermo-Shrink?
SubCategoryElectrical
Thickness, Thickness:022 IN
TypeHeat Shrink, Thin Wall
UL, RoHS CompliantUL Listed
UNSPSC39121723
UPC, UPC Code, UPC:783250466078
Use Shrink Tubing With Wire Size, Wire Size8 to 4 AWG
Use With Wire Size8 AWG to 4 AWG
Voltage Rating600 VAC
Volts AC600
Volume Resistivity:1014 OHM CM For ASTM D 876 Test Method
Wall TypeThin

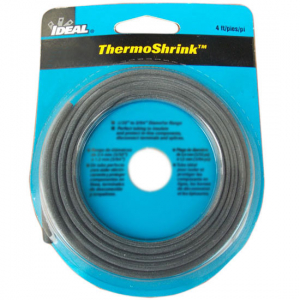

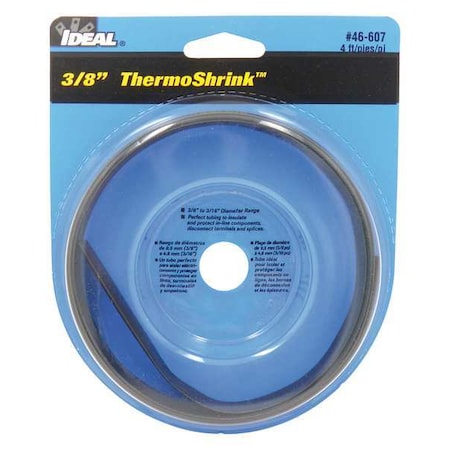

What's Included4' Length x 3/8" ID Thermo-Shrink Thin-Wall Heat Shrink Disk

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomjensentools.com447-01018.06169.764115Ideal1.018.06 @ Qty: 15+
thumbzoomgalesburgelectric.com46-60718.87177.378115Ideal18.87 @ Qty: 15+
AmazonSCB07GL53TNX19.02178.788115Ideal Industries19.02 @ Qty: 15+
zackelectronics.com46-60719.65184.71115Ideal Industries19.65 @ Qty: 15+
thumbzoomusmegastore.com46-60720.09188.846115Ideal20.09 @ Qty: 15+
thumbzoomMegadepot46-60720.09188.846115Ideal20.09 @ Qty: 15+
Dale-Electric46-60720.22190.068115Ideal Industries20.22 @ Qty: 15+
ToolUp.comIDEAL 46-60721.75204.45115Ideal21.75 @ Qty: 15+
kscdirect.comIDL 46-60722.67213.098115Ideal Industries, Inc.22.67 @ Qty: 15+
thumbzoomEIO46-60722.73213.662115IDEAL22.73 @ Qty: 15+
thumbzoomNewark50F317823.05253.55515IDEAL23.05 @ Qty: 15+
thumbzoomPlatt.com002879623.06216.764143Ideal23.06 @ Qty: 15+
thumbzoomalldataresource.com73493924.89233.966115Ideal Industries Usa24.89 @ Qty: 15+
thumbzoomturtle.comIDE 46-60725.22237.068115Ideal Industries25.22 @ Qty: 15+
thumbzoomcrescentelectric.com4925925.36238.384115Ideal25.36 @ Qty: 15+
thumbzoomelectricalparts.com46-60725.8272242.77568115Ideal25.8272 @ Qty: 15+
thumbzoombulbspro.com46-60726.44248.536115IDEAL Industries26.44 @ Qty: 15+
Graybar8903470626.768251.6192115Ideal Industries26.768 @ Qty: 15+
us.rs-online.com7022504227.67304.37515Ideal Industries27.67 @ Qty: 15+
thumbzoomUnited Electric10722533.39313.866115IDEAL33.39 @ Qty: 15+
thumbzoomZoroG536391588.15828.61115Ideal0.7788.15 @ Qty: 15+
thumbzoomsimsupply.comZO-G5363915104.43981.642115Ideal104.43 @ Qty: 15+
thumbzoomsustainablesupply.comC1176798121.011137.494115Ideal Industries0.77121.01 @ Qty: 15+
thumbzoomRaptor SuppliesAF9CUG195.4021681836.7803792115IDEAL195.402168 @ Qty: 15+
B07CG6QSKX

Ideal 46-607, Thermo-Shrink 3/8" I.D. 8-4 AWG Thin-Wall Heat Shrinkable Tubing, Length 4', Pack of 15 pcs

Ideal 46-607, Thermo-Shrink 3/8" I.D. 8-4 AWG Thin-Wall Heat Shrinkable Tubing, Length 4zoom
B07CG6QSKX

Ideal 46-607, Thermo-Shrink 3/8" I.D. 8-4 AWG Thin-Wall Heat Shrinkable Tubing, Length 4', Pack of 15 pcs

Ideal 46-607, Thermo-Shrink 3/8" I.D. 8-4 AWG Thin-Wall Heat Shrinkable Tubing, Length 4zoom
B07CG6QSKX

Ideal 46-607, Thermo-Shrink 3/8" I.D. 8-4 AWG Thin-Wall Heat Shrinkable Tubing, Length 4', Pack of 15 pcs
