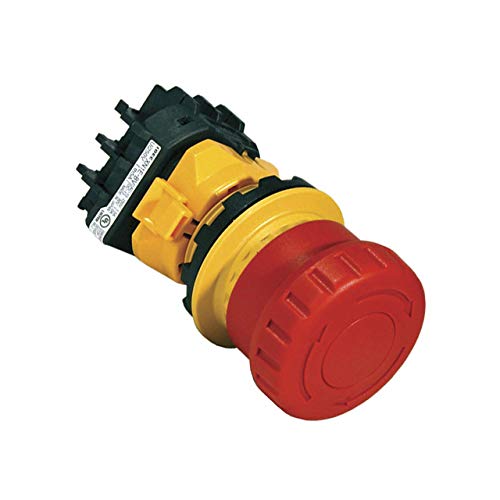

Idec XN1E-BV402MR Switch Emergency Stop
- Brand: IDEC
- PartNumber: XN1E-BV402MR
- Model: XN1E-BV402MR
- Manufacturer: Idec
- Label: Idec
Attributes
| Key | Value |
|---|
| Actuator Color | Red |
| Actuator Type | Button |
| AMP Rating | 5 |
| Ampacity @ 30 VDC(A) | 2 |
| Approvals | CCC, CE, CSA, TUV, UL |
| Base Product Number | XN1E |
| Bezel | Plastic Round |
| Category | Switches |
| Certification Listings | UL;CSA;CE;CCC;TUV |
| Circuit | DPST-NC |
| Color | Red |
| Comments | Screw |
| Contact Configuration | 2NC |
| Contact Material | Gold Plated Silver |
| Contact Rating | 250 V |
| Contacts | 2NC |
| Current (A) | 5 A |
| Current Rating | 2 A |
| Current Rating (Amps) | 5A (AC), 2A (DC) |
| Depth Behind Panel | 1.88 " |
| Description | 30MM EMERGENCY-STOP |
| Digi-Key Part Number | 1885-1618-ND |
| Family Series | IDEC Switches, XN Series |
| Features | - |
| Full Shroud | No |
| Gross Weight | 0.175 lbs |
| Head Size | 40 mm |
| Illumination Voltage (N. | - |
| Includes | - |
| Ingress Protection | IP65 - Dust Tight, Wate. |
| IP Rating | IP65 |
| Item Number | XN1E-BV402MR |
| Lens/Button Color | Red |
| Lens/Button Shape | Mushroom |
| Manufacturer | Idec |
| Manufacturer Part Number | XN1E-BV402MR |
| Manufacturer Product Nu. | XN1E-BV402MR |
| Manufacturer Standard L. | 35 Weeks |
| Max Voltage | 250 VAC, 250 VDC |
| Maximum Operating Tempe. | +60 ?C |
| Mfr | Idec |
| Minimum Operating Tempe. | -25 ?C |
| Mounting Type | Panel Mount, Front, Pan. |
| N/C Contacts | 2 |
| Net Weight | 0.145 lbs |
| Nominal Mounting Size | 30 mm |
| Notes | Protection function: IP. |
| Operating Temperature | -25?C ~ 60?C |
| Operation | Push-Pull;Push Lock-Twi. |
| Operator Size (mm) | 40 mm, 40 |
| Package | Bulk |
| Panel Cut Out | 30.5 mm |
| Panel Cutout Dimensions | Circular - 30.50mm Dia |
| Product Series | XN |
| Product Status | Active |
| Reset Operation | Twist |
| Series | XN Series, XN |
| Shape | Mushroom, Mushroom shape |
| Size | 30 mm |
| Standards | CCC ; CE ; CSA C22.2 No. |
| Switch Function | Push-Pull/Twist Reset, . |
| Temperature Operating R. | -25 to +60 ?C |
| Terminal Shape | Screw terminal |
| Terminal Type | Screw |
| Termination Style | Screw terminal |
| Type | Non-Illuminated Pushbut. |
| Voltage | 250 VAC;250 VDC |
| Voltage Rating | 250 ; 250 V |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Voltage, Rated AC | 250 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Walker Industrial | XN1E-BV402MR | 49.11 | 1 | In Stock | 17 | IDEC | | 49.11 @ 1 |
| Onlinecomponents.com | XN1E-BV402MR | 53.99 | 1 | 2 | | IDEC | | 53.99 @ 1 |
 | Carlton Bates Company | 78040059633 | 57.33 | 1 | In Stock | | IDEC | | 57.33 @ 1 |
 | Misumi USA | XN1E-BV402MR | 57.96 | 1 | In Stock | 23 | IDEC | | 57.96 @ 1 |
 | motorsandcontrol.com | XN1E-BV402MR | 61.38 | 1 | In Stock | | Idec | | 61.38 @ 1 |
 | Galco | XN1E-BV402MR-IDEC | 65.77 | 1 | 12 | | IDEC | 0.175 | 65.77 @ 1 |
 | Digi-Key | 8344883 | 74.4 | 1 | 1 | | IDEC | | 74.4 @ 1 |
| us.rs-online.com | 70173134 | 74.43 | 1 | 6 | | IDEC Corporation | | 74.43 @ 1 |
 | Newark | 75M3622 | 77.36 | 1 | In Stock | | IDEC | | 77.36 @ 1 |
