Description:

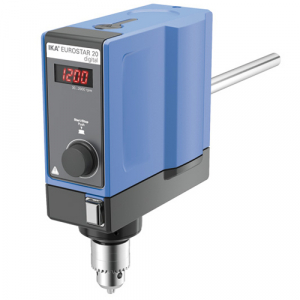

<p><strong>Eurostar 20 Digital 15 L Laboratory Stirrer, 115V </strong> </p> <p>Laboratory stirrer designed for simple stirring tasks for quantities up to 15 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 - 2000 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. </p> <p>Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. </p> <p><strong>Features: </strong> </p> <ul><li>Digital speed display </li> <li>Infinitely adjustable speed </li> <li>Push-through agitator shafts </li> <li>Overload protection </li> <li>Short-term overload operation </li> <li>Slim casing </li> <li>Quiet operation </li> <li>Error code display </li> </ul>
Attributes
| Key ^ | Value |
|---|---|
| Analog output, clean room qualified, explosion proofed, Intermittent operation, Reversible direction of rotation, RS 232 interface, Temperature display, Timer, Torque display, USB interface | no |
| Chuck range max. diameter | 10 mm |
| Chuck range min. diameter | 0.5 mm |
| Deviation of speed measurement n < 300rpm | 3 ?rpm |
| Deviation of speed measurement n > 300rpm | 1 ?% |
| Dimensions (W x H x D) | 86 x 248 x 208 mm |
| Extension arm diameter | 16 mm |
| Extension arm length | 220 mm |
| Fastening on stand | extension arm |
| Frequency | 50/60 Hz |
| Hollow shaft (push-through - when stopped) | yes |
| Hollow shaft, inner diameter | 11 mm |
| housing material | alu-cast coating / thermoplastic polymer |
| Motor principle | Brushless DC |
| Motor rating input, Power input | 70 W |
| Motor rating output, Output max. at stirring shaft | 42 W |
| Nominal torque | 0.2 Nm |
| Permissible ambient temperature | 5 - 40 ?C |
| Permissible ON time | 100 % |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| Setting accuracy speed | 1 ?rpm |
| Speed control | stepless |
| Speed display | LED |
| Speed range | 0/30 - 2000 rpm |
| Stirring element fastening | chuck |
| Stirring quantity max. per stirring position (H2O) | 15 l |
| Torque max. at stirring shaft | 20 Ncm |
| Viscosity max. | 10000 mPas |
| Weight | 4.4 kg |
