- mpnITG-48-OB-2
- brandname: Imperial
- manufacturername: Imperial

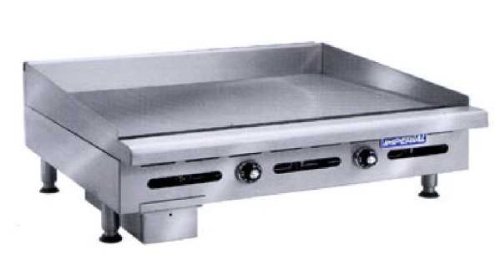

Imperial - ITG-48-OB-2 - 48 inches Thermostatically Controlled Gas Griddle with 2 Open Burners
- Brand: Imperial
- PartNumber: ITG-48-OB-2
- Model: ITG-48-OB-2
- Manufacturer: Imperial
- Label: Imperial
Attributes
| Key | Value |
|---|
| Back grate size | 12" x 13" (305 x 330 mm) |
| Burner distribution | Burner every 12" (305 m. |
| Burner material | Cast iron, Heavy grade . |
| Burner output | 30,000 BTU (9 KW) per b. |
| Burner style | "U" shaped, Pyrocentric. |
| Continuous Pilot | 1 per burner |
| Control knobs | Black phenolic plastic |
| Control: | Thermostatic |
| Crated dimensions | 62-1/2" w x 36" d x 16-. |
| Depth: | 32 3/8? |
| Dimensions | 60" w x 32-3/8" d x 14". |
| Front edge | One piece rolled ledge |
| Front grate size | 12" x 11" (305 x 279 mm) |
| Gaskets/screws | No |
| Grate material | Cast iron |
| Grate style | Anti-clogging, shield d. |
| Grease can | 1 Gal. (3.8 L) capacity. |
| Grease trough | 4" (102 mm) Wide |
| Griddle material | Highly polished steel |
| Griddle width | 48" (1219 mm) |
| Heat diffuser plate | Yes |
| Ignition type | Pilot |
| Installation type | Counter Top model |
| Legs | 4" (102 mm) Stainless S. |
| Low simmer output | 7,000 BTU (2 KW) |
| Manifold pressure | Natural gas: 5.0, LPG: . |
| No. of Burners: | 4 Burners |
| Number of Burners | 2 Open Burners, 4 |
| Open burner output | 32,000 BTU (9 KW) |
| Plate thickness | 1" (25 mm) |
| Power type | Natural or LP gas |
| Power: | Gas |
| Range match | Yes |
| Rear flue | Yes |
| Removable | Yes |
| Ship weight | 635 lbs (288 Kg) |
| Splash guard | Stainless Steel tapered. |
| Total BTU/hr. | 184,000 (54 KW) |
| Width | 60" (1524 mm) |
| Width: | 48?, 48 in |
| Wrap material | Stainless Steel, except. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | ITG-48-OB-2 | 5262.0 | 1 | In Stock | | Imperial | | 5262.0 @ 1 |
 | Tundra | IMPITG48OB2 | 6548.85 | 1 | In Stock | | Imperial | | 6548.85 @ 1 |
