INA GLCTE30-N

mpnGLCTE30-N
brandname: Ina
manufacturername: Ina

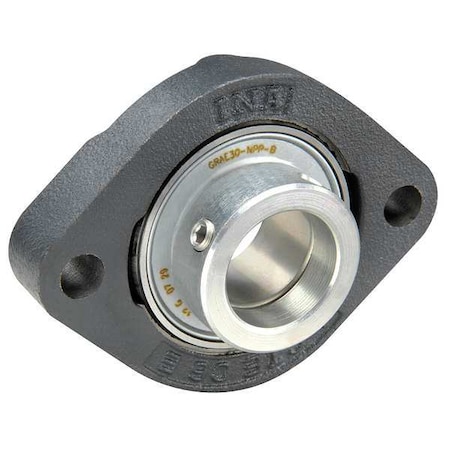

Ina Flange Bearing 2-Bolt Ball 30mm Bore

Ina Flange Bearing 2-Bolt Ball 30mm Bore

zoom

Brand: INA
PartNumber: GLCTE30-N
PackageQuantity: 1
Manufacturer: INA
Label: INA

Attributes

Key	Value
Bearing Housing Materia.	Cast Iron
Bearing Insert Material	52100 Chrome Steel
Bearing Insert Type	Ball
Bolt Hole Center-to-Cen.	90.5 mm
Bolt Size	M10
Bore Dia.	30 mm
Bore Diameter	30 mm
Brand	Ina
Current Stock	22
Dimension D	30 mm
Dimension H	112.5 mm
Dimension J	90 1/2 mm
Dimension L	84 mm
Dimension N	11.5 mm
Finish	Painted
International Shipping	No
Lead Time	Expected to ship in 1-2.
Locking Type	Eccentric Locking Collar
Mount Hole Center-to-Ce.	90.5 mm
Mount Hole Size	11.5 mm
Mounting Bolt Size	M10
Mpn	GLCTE30-N
Overall Height	112.5 mm
Overall Length	84 mm
Overall Width	38.1 mm
Series	GLCTE
Shaft Locking Type	Eccentric Collar
SKU	ZO-G7149301
Standards	GTB14 DIN1680-2
SubCategory	Power Transmission
Temp. Range	-20 Degrees to 120 Deg.
