NATR8-PP-A

B01CO4P540

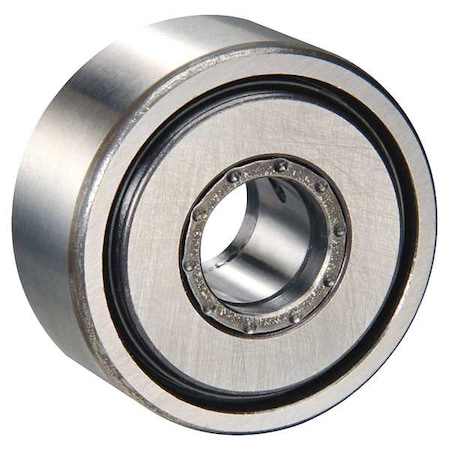

Ina NATR8-PP-A Yoke Roller - Metric - Crowned OD - Sealed

Ina NATR8-PP-A Yoke Roller - Metric - Crowned OD - Sealedzoom

Attributes

Key Value
Agency Compliance-
Bearing MaterialAlloy Steel
Bearing Material Grade52100
Bearing TypeNeedle Roller - Cage Gu.
Bore Dia.8 mm
Bore Dia. (mm)8
Bore Diameter8 mm
BrandIna
ClosureDouble Sealed
Country of Origin (subj.Slovakia
Current Stock22
Duty TypeHeavy
Dynamic Load Capacity (.1,530 lb
Dynamic Radial Load Cap.5,500 N
FeaturesLow Friction, Optimum G.
Flange DiameterNot Applicable
Flange ThicknessNot Applicable
For Use With-
Includes-
International ShippingNo
ItemYoke Roller
Lead TimeExpected to ship in 1-2.
Load DirectionRadial
Lubrication OpeningsInner Ring
Max. Load Axial (Lb.)-
Max. Load Radial (Lb.)1,530 lb
Maximum Speed7,500 RPM Grease
Maximum Temperature250 Degrees F
Minimum Temperature-30 Degrees F
MpnNATR8-PP-A
Number of Bearings1
Overall Length15 mm
Pilot Dia. (In.)-
Pilot Hole Depth (In.)-
Roller Dia.24 mm
Roller Dia. (mm)24
Roller Diameter24 mm
Roller Head TypeCrowned
Roller MaterialAlloy Steel
Roller Material GradeSAE 52100
Roller ShapeCrowned
Roller StyleHeavy Yoke
Roller TypeCrowned
Roller Width15 mm
Roller Width (mm)15
Rolling Element Rows1
Seal MaterialPlastic
Seal TypeContact
Size24
SKUZO-G3046127
Static Axial Load Capac.1,730 lbf
Static Load Capacity (L.1,730 lb
Static Radial Load Capa.6,700 N
Step Size (In.)-
Step Size (mm)-
Stud Material52100 Steel
Stud Offset-
SubCategoryPower Transmission
System of MeasurementMetric
Thread Length (In.)-
Thread Length (mm)-
Thread Size-
TypeYoke
V-Groove AngleNot Applicable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG304612751.381In StockIna0.0951.38 @ 1
thumbzoomsimsupply.comZO-G304612761.16122Ina61.16 @ 1
