INA SCE2412

B00270VQ6I

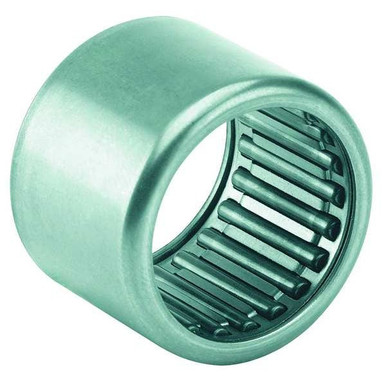

INA SCE2412 Needle Roller Bearing, Steel Cage, Open End, Inch, 1-1/2" ID, 1-7/8" OD, 3/4" Width, 7400rpm Maximum Rotational Speed, 10900lbf Static Load Capacity, 6800lbf Dynamic Load Capacity

INA SCE2412 Needle Roller Bearing, Steel Cage, Open End, Inch, 1-1/2" ID, 1-7/8" OD, 3/4" Width, 7400rpm Maximum Rotational Speed, 10900lbf Static Load Capacity, 6800lbf Dynamic Load Capacityzoom

Attributes

Key Value
Bearing DesignSCE
Bore1.5 Inch | 38.1 Millime.
Bore Dia. (In.)1.5 in
Bore Diameter1 1/2 in
BrandIna
Cage MaterialSteel
Cage Material GradeSheet Steel
Category - BDINeedle Non Thrust Rolle.
Closed EndNo
ComponentRoller Assembly with Ou.
Dynamic Load Capacity (.6,857 lb
EAN4054364122270
EnclosureOpen
Harmonized Tariff Code8482.40.00.00
Inch - MetricInch
International ShippingNo
ItemNeedle Roller Bearing
Keyword StringNeedle
Lead TimeExpected to ship in 1-2.
Long Description1-1/2" Bore; 1-7/8" Out.
Manufacturer Item NumberSCE2412
Manufacturer NameSCHAEFFLER GROUP
Max. RPM7,400 RPM
Maximum Speed6,700 RPM
Maximum Temperature284 Degrees F
Minimum Buy QuantityN/A
MpnSCE2412
NounBearing
Number of RowsOne
Number of Rows of Rolle.Single Row
Other Features2 Rib Outer Ring | Draw.
Outside Dia. (In.)1.875 in
Outside Diameter1 7/8 in, 1.875 Inch | .
Overall Width0.75 in
Product Group - BDIB04144
RelubricatableNo
RetainerYes
Ring MaterialAlloy Steel
Roller MaterialAlloy Steel
Roller Material Grade100Cr6
Rolling ElementNeedle Roller Bearing
Self AligningNo
SeparableNo
SKUZO-G1642033
StandardsABMA 18.2-1982
Static Load Capacity (L.10,903 lb
Static Radial Load Capa.10,903.8 lbf
SubCategoryPower Transmission
System of MeasurementInch
Temp. Range (F)-5 Degrees to +212 Deg.
Thrust BearingNo
TypeDrawn Cup
UNSPSC31171512
Weight / Kilogram0.06
Weight / LBS0.137
Width0.75 Inch | 19.05 Milli.
Width (In.)0.75 in
