INGERSOLL CUTTING TOOLS 3032519

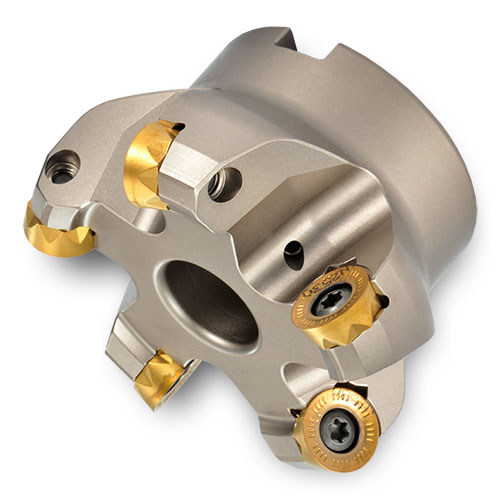

1A7H-25R01 FormMasterShear Face Mill ISO Item #1A7H-25R01 Ingersoll Part #3032519 APMX - Depth of Cut Max.: 6.00 mm. OAL - Overall Length: 1.570. ZEFF - Eff. Teeth: 5. CSP - Coolant: Yes. RMPX - Ramp Angle Max.: 4.0. STEP File: . DCON - Bore Diameter : 0.7500. KWW - Keyway: 0.312. DXF File: . DCX - Cutting Diameter Max.: 2.500. DC - Cutting Diameter : 2.031. PRFRAD - Profile Radius: 6.00 mm.
