INGERSOLL CUTTING TOOLS 3111232

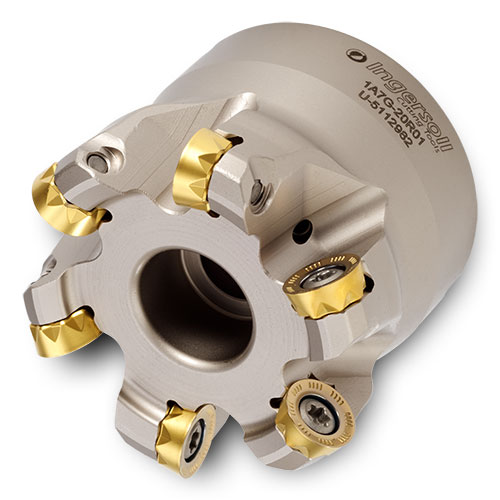

1A7G040R00 FormMasterShear Face Mill ISO Item #1A7G040R00 Ingersoll Part #3111232 APMX - Depth of Cut Max.: 5.00 mm. OAL - Overall Length: 40.00 mm. ZEFF - Eff. Teeth: 5. CSP - Coolant: Yes. RMPX - Ramp Angle Max.: 5.0. DCON - Bore Diameter : 16.00 mm. KWW - Keyway: 8.40 mm. DCX - Cutting Diameter Max.: 40.00 mm. DC - Cutting Diameter : 30.00 mm. PRFRAD - Profile Radius: 5.00 mm.
