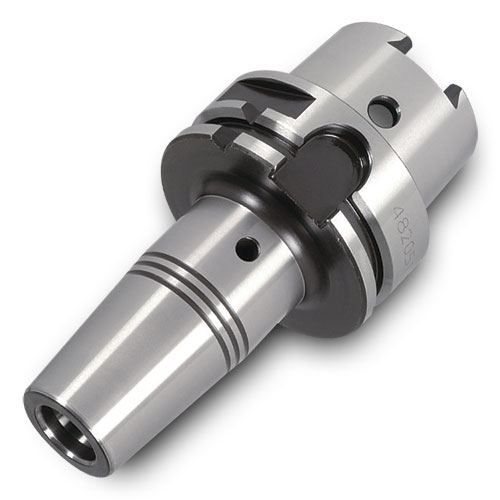

INGERSOLL CUTTING TOOLS 4542783

HSKA100SRKIN12X120 Rotary Tooling ShrinkIn ISO Item #HSKA100SRKIN12X120 Ingersoll Part #4542783 SS - Connection Code Machine Side: HSK-A 100. L - Gauge Length: 120.00 mm. J - Pre-set Screw: M10. L1 - Body Length 1: 91.00 mm. d2 - Bore Diameter : 12.00 mm. D2 - Body Diameter 2: 32.00 mm. L3 - Nose Length: 51.00 mm. D1 - Nose Diameter : 24.00 mm. L Max - Throat Depth Max.: 47.00 mm. L Min - Throat Depth Min.: 36.00 mm.
