INGERSOLL CUTTING TOOLS 4556839

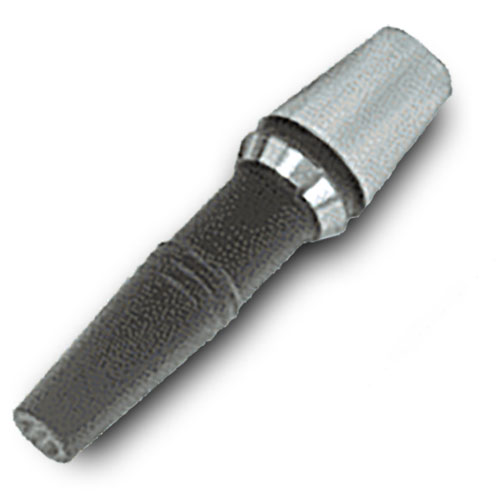

ER25SRK8X60 Rotary Tooling ShrinkIn ISO Item #ER25SRK8X60 Ingersoll Part #4556839 STEP File: . DCON - Bore Diameter : 8.00 mm. DXF File: . BD - Body Diameter : 14.00 mm. LB - Body Length: 39.50 mm. BHTA - Body Half Taper Angle: 4.0. CCMS - Connection Code Machine Side: ER25. CNSC - Coolant Entry Style Code: 1. CXSC - Coolant Exit Style Code: 1. LBX - Body Length Max.: 60.00 mm. LSCN - Clamping Length Min.: 25.00 mm. LSCX - Clamping Length Max.: 31.00 mm. BDX - Body Diameter Max.: 17.90 mm.
