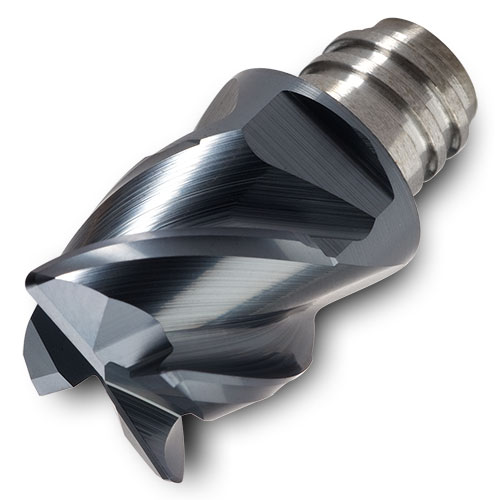

INGERSOLL CUTTING TOOLS 5840209

47D10007T6RD05 IN2005 ChipSurfer Tip ISO Item #47D10007T6RD05 IN2005 Ingersoll Part #5840209 DC - Cutting Diameter : 10.00 mm. RE/CHW - Corner Radius/Chamfer: 0.500 R. APMX - Depth of Cut Max.: 7.00 mm. FHA - Flute Helix Angle: 45. CSP - Coolant: No. KAPR - Cutting Edge Angle: 90. LF - Functional Length: 13.00 mm. DHUB - Hub Diameter : 9.60 mm. CCMS - Connection Code Machine Side: Chip Surfer T06. ZEFF - Eff. Flutes: 4. TQ - Torque: 90 in lb.
