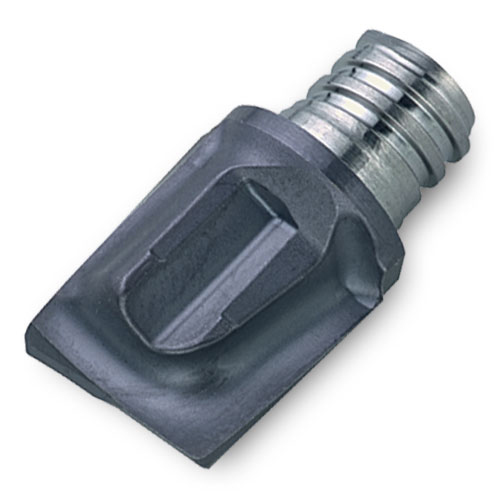

INGERSOLL CUTTING TOOLS 5840438

45D10009T6RA20 IN2005 ChipSurfer Tip ISO Item #45D10009T6RA20 IN2005 Ingersoll Part #5840438 DC - Cutting Diameter : 10.00 mm. RE/CHW - Corner Radius/Chamfer: 2.000 R. APMX - Depth of Cut Max.: 9.00 mm. FHA - Flute Helix Angle: 10. CSP - Coolant: No. RMPX - Ramp Angle Max.: 90.0. KAPR - Cutting Edge Angle: 90. LF - Functional Length: 12.40 mm. DHUB - Hub Diameter : 9.50 mm. CCMS - Connection Code Machine Side: Chip Surfer T06. ZEFF - Eff. Flutes: 2. TQ - Torque: 90 in lb.
