INGERSOLL CUTTING TOOLS 5872738

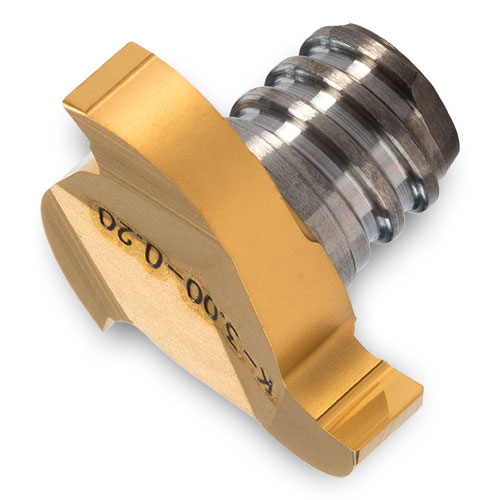

16T17714T6RK00 IN1530 ChipSurfer Tip ISO Item #16T17714T6RK00 IN1530 Ingersoll Part #5872738 DC - Cutting Diameter : 17.70 mm. CSP - Coolant: No. LF - Functional Length: 1.55 mm. STEP File: . CDX - Cutting Depth Max.: 3.80 mm. DHUB - Hub Diameter : 10.00 mm. DXF File: . CW - Cutting Width: 1.40 mm. CCMS - Connection Code Machine Side: Chip Surfer T06. ZEFF - Eff. Flutes: 3. TQ - Torque: 90 in lb. RE/CHW - Corner Radius/Chamfer Width: 0.050 R.
