INGERSOLL CUTTING TOOLS 5873253

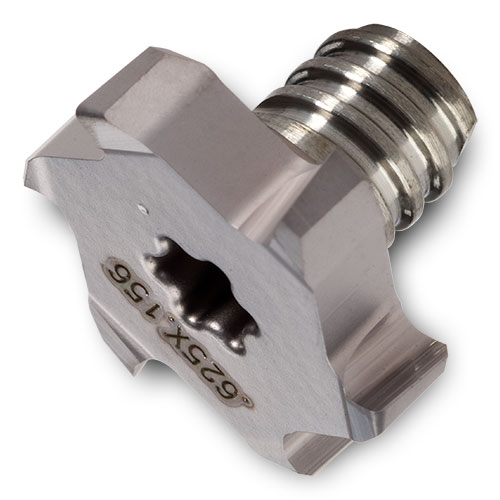

18T27799TRRN02 IN1530 ChipSurfer Tip ISO Item #18T27799TRRN02 IN1530 Ingersoll Part #5873253 DC - Cutting Diameter : 27.70 mm. CSP - Coolant: No. LF - Functional Length: 10.35 mm. STEP File: . CDX - Cutting Depth Max.: 6.00 mm. DHUB - Hub Diameter : 15.70 mm. DXF File: . CW - Cutting Width: 10.00 mm. CCMS - Connection Code Machine Side: Chip Surfer T10. ZEFF - Eff. Flutes: 6. TQ - Torque: 250 in lb. RE/CHW - Corner Radius/Chamfer Width: 0.200 R.
