INGERSOLL CUTTING TOOLS 6154613

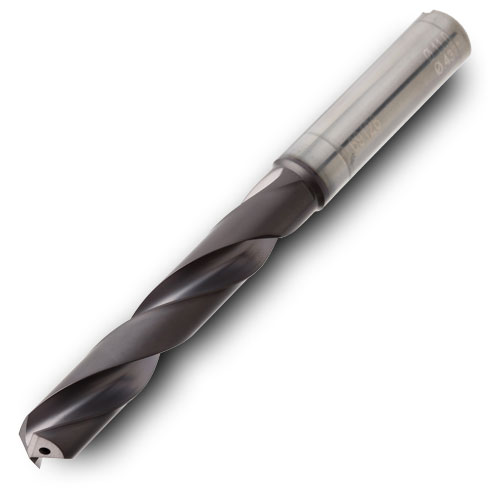

DH0440029T7R01 IN2005 Solid Carbide Drill ISO Item #DH0440029T7R01 IN2005 Ingersoll Part #6154613 DC - Cutting Diameter : 0.1732 (4.40 mm). OAL - Overall Length: 74.00 mm. ZEFF - Eff. Teeth: 2. DCON - Shank Diameter : 6.00 mm. CSP - Coolant: Yes. PL - Point Length: 0.70 mm. LU - Usable Length: 29.00 mm. LS - Shank Length: 35.00 mm. SIG - Point Angle: 140. ULDR - Usable Length Diameter Ratio: 5??. LCF - Chip Flute Length: 36.00 mm.
