Intermatic MIL72AQWUZH-240

B003A1V3CA

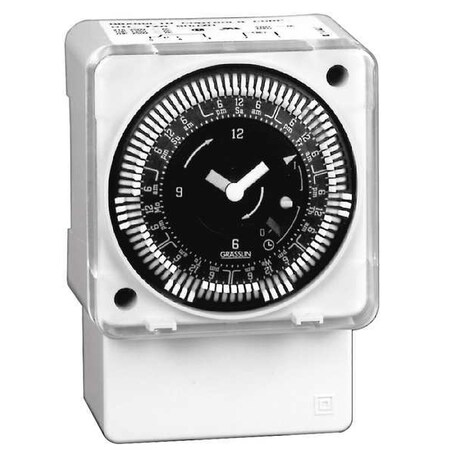

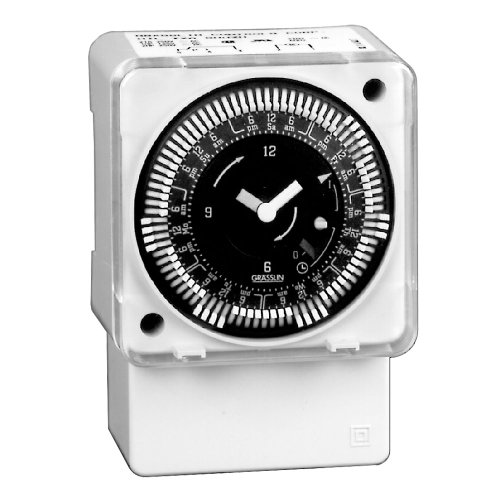

Grasslin by Intermatic MIL72AQWUZH-240 7-Day 240V Surface/Din Rail Mount Electromechanical Time Control with Manual Override and Battery Backup

Grasslin by Intermatic MIL72AQWUZH-240 7-Day 240V Surface/Din Rail Mount Electromechanical Time Control with Manual Override and Battery Backupzoom

Attributes

Key Value
Amperage Rating21 A
Amps21 A
Contact FormSPDT, 1NO-1NC 1SPDT
Contact HP @ 120V1 hp
Contact HP @ 240V2 hp
Country of Origin (subj.Mexico
Day SkipperYes
Depth3 5/16 in
Description/Special Fea.Battery Backup, Overrid.
Description:TIME SW,CLOCK FACE,QTZ,.
Dimensions2.83 in L x 2.06 in W x.
Display TypeAnalog
Electrical Connections12 AWG Screw Terminal
Enclosure TypePlastic
Height4 19/32 in
Horsepower1 hp, 2 hp
ItemElectromechanical Timer
ManufacturerINTERMATIC
Max. On/Off Cycles48
Max. Time Setting6 days 22 hr
MFG Part #:MIL72AQWUZH-240
Min. Time Setting2 hr
MountSurface/DIN Rail
Mounting TypeDIN Rail/Surface
NEMA Rating3R
Nominal Max. Time Setti.7 day
Number of Channels1
Number of Poles1, 2
Number of Trippers Incl.96
Operating Temp.-4 Degrees to 131 Degr.
Operation Mode7 days
SeriesMIL72
StandardsAHRI, CE, cRUus, CSA, UL
Supplier:INTERMATIC
Temperature Rating-4 to 131 deg F
Time Setting2 hr to 7 days
Time Setting Range2 hr. to 6 days 22 hr.
TypeQuartz Drive, 7-Day
UPC:614573143011
Voltage208/240V AC
Voltage Rating240 VAC
Width3 5/16 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG7027833144.431In Stock11Intermatic144.43 @ 1
thumbzoomimprovedepot.com989823157.01In StockIntermatic157.0 @ 1
thumbzoomsustainablesupply.comC1170544165.881In StockIntermatic0.5165.88 @ 1
Grainger20XF74169.01In Stock15INTERMATIC169.0 @ 1
thumbzoommidwestapplianceparts.comMIL72AQWUZH-240-IN-P175.911In StockIntermatic175.91 @ 1
thumbzoomgsistore.comMIL72AQWUZH-240178.951In StockIntermatic178.95 @ 1
kscdirect.comINT MIL72AQWUZH-240180.521In StockINTERMATIC180.52 @ 1
hvacdiscountstore.comINT--MIL72AQWUZH-240181.111In StockINTERMATIC181.11 @ 1
thumbzoomVoomi SupplyMIL72AQWUZH-240185.011In StockIntermatic185.01 @ 1
thumbzoomindustrialstores.comMIL72AQWUZH-240188.41In Stock10Intermatic188.4 @ 1
