- mpnMS3106E10SL-4P
- brandname: ITT Cannon, LLC
- manufacturername: ITT Cannon, LLC

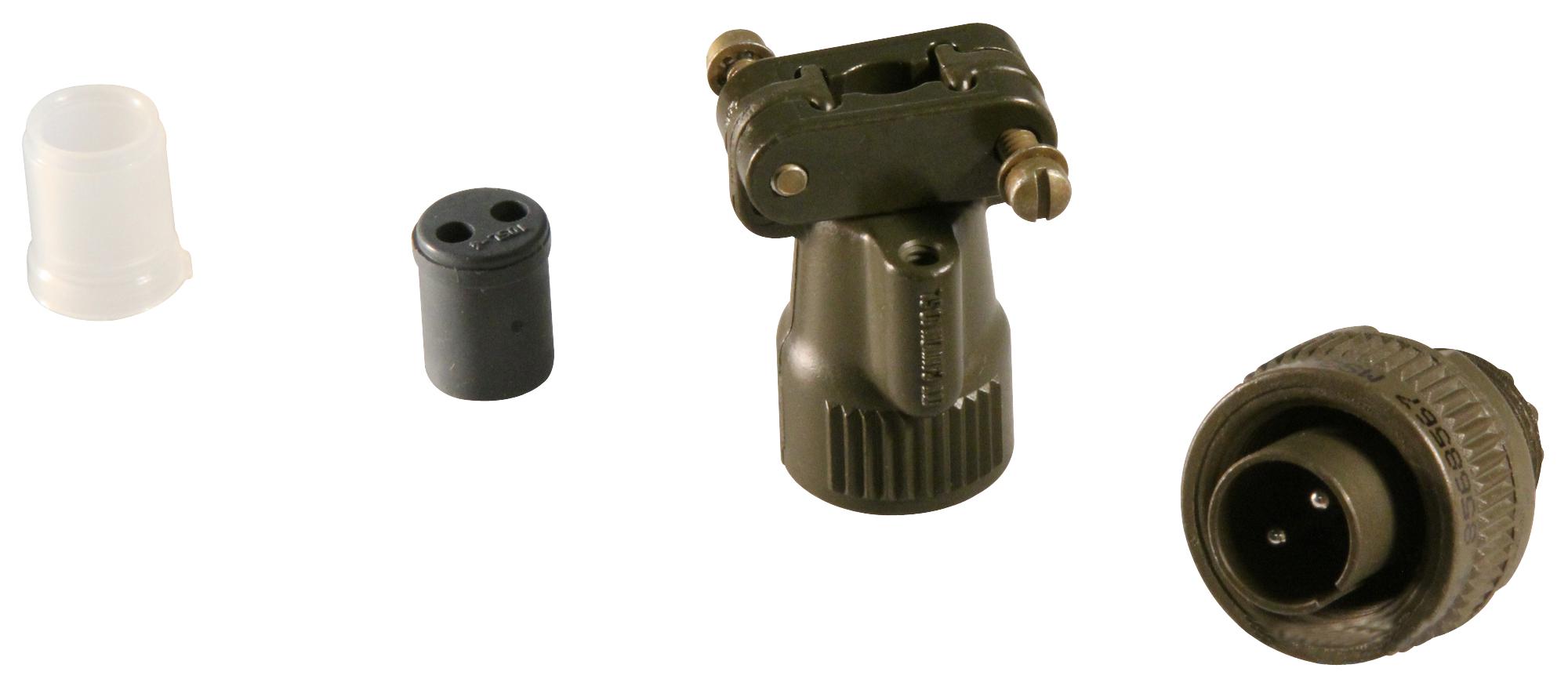

Itt Cannon Circular Connector, Plug, 10Sl-4, Cable - MS3106E10SL-4P
- Brand: ITT Cannon
- PartNumber: MS3106E10SL-4P
- PackageQuantity: 1
- Manufacturer: ITT Cannon
- Label: ITT Cannon
Attributes
| Key | Value |
|---|
| Amperage Rating | 13A |
| Base Product Number | MS3106E10 |
| Category | Connectors, Interconnec. |
| Color | Olive Drab |
| Connector Style | Plug |
| Connector Type | Plug, Male Pins, Circul. |
| Contact Finish - Mating | Silver |
| Contact Finish Thicknes. | - |
| Contact Material | Copper Alloy |
| Contact Mating Life | 100 |
| Contact Plating | Silver |
| Contact Size | 2#15S |
| Contact Style | Pin |
| Contacts Supplied | Yes |
| Contacts, # of | 2 |
| Current Rating (Amps) | 22A |
| Endbell Type | Cable Clamp |
| Export Class | EAR / EAR99 |
| Fastening Type | Threaded |
| Features | Cable Clamp, Coupling N. |
| Grommet & Seals Material | Neoprene |
| Ingress Protection | Environment Resistant |
| Insert Arrangement | 10SL-4 |
| Insert Material | Neoprene |
| Insert Rotation/Keying | Normal |
| Mfr | ITT Cannon, LLC |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line),. |
| Notification | QPL or Military Specs a. |
| Number of Positions | 2 |
| Operating Temperature | -55?C ~ 125?C |
| Operating Temperature &. | -67 to +257 (-55 to +12. |
| Operating Voltage AC V . | 500 |
| Operating Voltage DC | 700 |
| Orientation | N (Normal), Straight |
| Package | Bulk |
| Part Status | Active |
| Product Status | Active |
| RoHS | No |
| Sealing | Meets IP67 |
| Series | Military, MIL-DTL-5015,. |
| Service Rating | A |
| Shell Color | Olive Drab |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Plating | Olive Drab Chromate ove. |
| Shell Size - Insert | 10SL-4 |
| Shell Size, MIL | - |
| Shielding | Yes, - |
| Specification | MIL-DTL-5015 |
| Termination | Solder Cup |
| Termination Method | Solder |
| Voltage Rating | 500VAC, 700VDC |
| Weight (g) | 30.07200 |
| Weight (lbs) | 0.06628 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Freelance Electronics | MS3106E10SL-4P | 8.866 | 1 | In Stock | | ITT CANNON | | 8.866 @ 1 |
| PEI-Genesis | MS3106E10SL-4P | 27.06 | 1 | 893 | | ITT Cannon | 0.06628 | 27.06 @ 1 |
| AmazonTP | B011OOH4KE | 30.51 | 1 | In Stock | 2 | ITT CANNON | | 30.51 @ 1 |
| Onlinecomponents.com | MS3106E10SL-4P | 33.74 | 1 | 2 | | ITT CANNON | | 33.74 @ 1 |
 | Newark | 07C9256 | 49.89 | 1 | 1809 | | ITT CANNON | | 49.89 @ 1 |
| Digi-Key | 8747092 | 82.35 | 1 | In Stock | | ITT Cannon, LLC | | 82.35 @ 1 |
