Description:

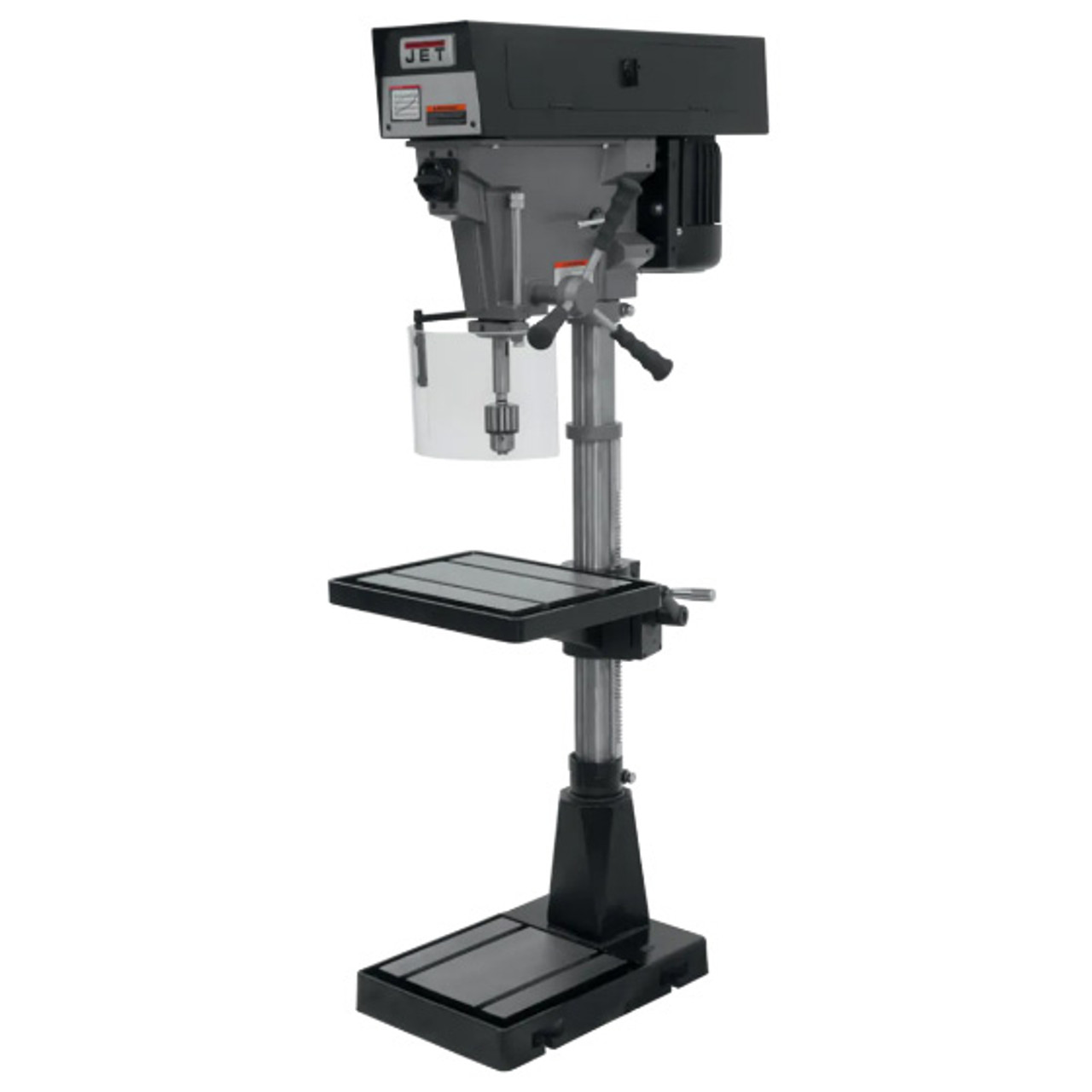

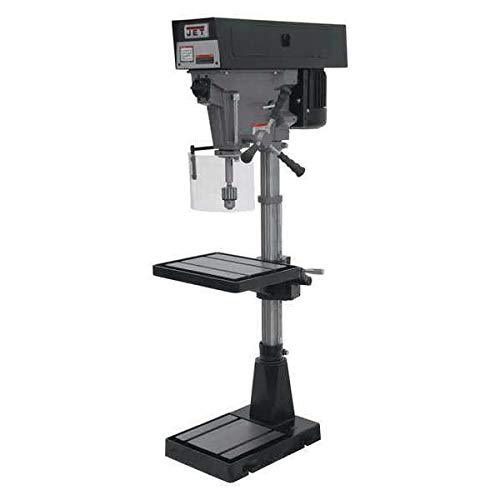

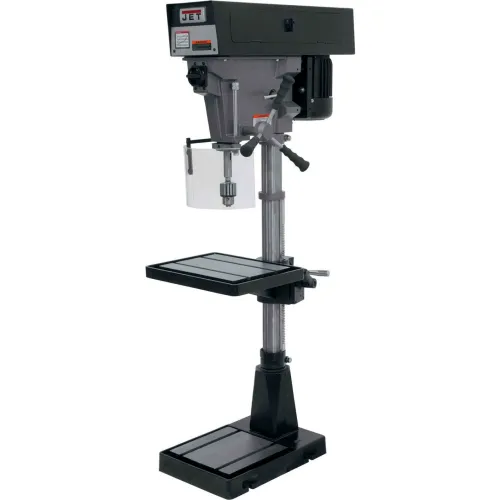

JET?s heavy-duty 6-speed Step Pulley Drill Press are manufactured with the weight and rigidity to maintain the tight tolerances required of metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces for full quill support throughout its travel. JET included a wider range of operation speeds for drilling both small and larger holes with quick and easy speed changes<BR><BR><b>Features:</b><ul style="margin-top:0px;padding-top: 5px; padding-bottom: 5px;"><li>Constructed to provide a solid base for drilling</li><li>Offers a greater range in spindle speeds than others in this class</li><li>Larger quill provides greater accuracy</li><li>Large production work table gives the operator the room to work and support for the job</li><li>3 Column for head support, while the quill is also supported to lessen deflection</li></ul><Br><br>
Weight:
450.0
Weight:
24.625 LB
Preferred Price:
2830.23
Price:
2830.23
Min Simple Price:
1599.0
Absolute Min Price:
2270.58
Min Price:
2270.58
Dimensions:
[71.0, 31.0, 22.0]
qty:
3
simpleSku:
jIwNDI:::354500
sku:
jIwNDI::60:354500@y0
condition:
11
seller:
Home Depot
amzMan:
jet
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Base Dimensions (In.) | 20-7/8 x 14-3/16 x 3-1/8, 20-7/8 x 14-3/16 x 3-1/8 </td |
| Base Height | 3 1/8 in |
| Base Length | 20 7/8 in |
| Base Size | 20-7/8 in x 14-3/16 in |
| Base Slots Number & Size (In.), T-Slots Number and Size (In.) | 2 & 1/2 </td |
| Base Slots Number and Size (In.), T-Slots Number and Size (In.) | 2, 1/2 |
| Base Width | 14 1/4 in |
| Base Work Table (In.) | 12-1/8 x 11-13/16, 12-1/8 x 11-13/16 </td |
| Brand, Manufacturer | Jet |
| Chuck Size | Not Included |
| Column Dia., Column Diameter | 3 in |
| Column Diameter (In.) | 3 </td |
| Column Diameter (In.), Current Stock | 3 |
| Condition | New |
| Distance Column to Spindle (In.), Drills to Center of Circle (in) | 15 |
| Distance Column to Spindle (In.), Drills to Center of Circle (in) | 15 </td |
| Drill Press Product Grouping | Production Drill Presses |
| Drilling Capacity Cast Iron (In.) | 5/8 </td, 5/8 |
| Drilling Capacity Mild Steel (In.) | 1/2 </td, 1/2 |
| Drive Type | Belt |
| Horsepower | 1 HP |
| International Shipping | No |
| Item | Floor Drill Press |
| Lead Time | Expected to ship in 1-2 business days |
| Maximum Overall Height, Overall Height | 71 in |
| Maximum Spindle-to-Base Height | 44 1/2 in |
| Maximum Spindle-to-Table Height | 25 3/4 in |
| Model, Mpn, SKU | 354500 |
| Motor (HP) | 1 HP, 115/230V, 1 Ph, 1 HP, 115/230V, 1 Ph </td |
| Motor Phase | 1 Ph |
| Number of Spindle Speeds, Spindle Travel (In.) | 6 </td |
| Number of Spindle Speeds, Spindle Travel (In.) | 6 |
| Overall Depth, Overall Length | 30 in |
| Overall Dimensions (L x W x H) (In.) | 30 x 20 x 71 </td, 30 x 20 x 71 |
| Overall Width | 20 in |
| Quill Dia., Quill Diameter | 2 1/4 in |
| Range of Spindle Speeds (RPM) | 375, 625, 1,125, 1,950, 3,400, 5,000 </td, 375, 625, 1,125, 1,950, 3,400, 5,000 |
| SKU | ZO-G9879247 |
| Spindle Distance to Base (In.) | 44-1/2 </td, 44-1/2 |
| Spindle Distance to Table (Max.) (In.) | 25-3/4, 25-3/4 </td |
| Spindle Taper (In. x TPI) | MT-2 </td, MT-2 |
| Stationary type | Belt Drive |
| Style (Type) | Variable, Variable </td |
| SubCategory | Machining/Machinery |
| Swing, Table Length | 15 in |
| T-Slot Centers (In.) | 5-5/16, 5-5/16 </td |
| Table Size (L x W) (In.) | 15 x 18 </td, 15 x 18 |
| Table Slot Size, Table Slot Width | 1/2 in |
| Table Travel (In.) | 16-3/4 </td, 16-3/4 |
| Table Width | 18 in |
| UPC | 662756092670 |
| Warranty | 2-Year Warranty |
| Weight (Lbs.) | 394 </td, 394 |
| Work Table Weight Capacity (Lbs.) | 90, 90 </td |
