mpn:
brand:
manufacturer:
MPN:
Weight:
41.25
Weight:
41.25 LB
Preferred Price:
19291.23
Price:
19291.23
Min Simple Price:
10899.0
Absolute Min Price:
15476.58
Min Price:
15476.58
Dimensions:
[85.0, 66.0, 63.0]
qty:
21
simpleSku:
jIwNDI:::690402
sku:
jIwNDI::D6:690402@y0
condition:
11
seller:
toolsplus.com
amzMan:
jet
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Country of Origin (subject to change) | Taiwan, Province of China |
| Cross Travel | 12" |
| Cross Travel (In.) | 12 |
| Features | Meehanite Castings, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle beardings, Chrome plated motor shaft with lower bearing support, 2 year warranty, 30 point inspection |
| Feed Rate for Power Down Feed (In.) | 0.0015, 0.003, 0.006 |
| Head Angle (Deg.) | 90 |
| Head Angle Front/Back (Deg.) | 46 |
| Hz | 60 |
| Includes | 2-Axis ACU-RITE VUE, X-Axis Powerfeed , One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools |

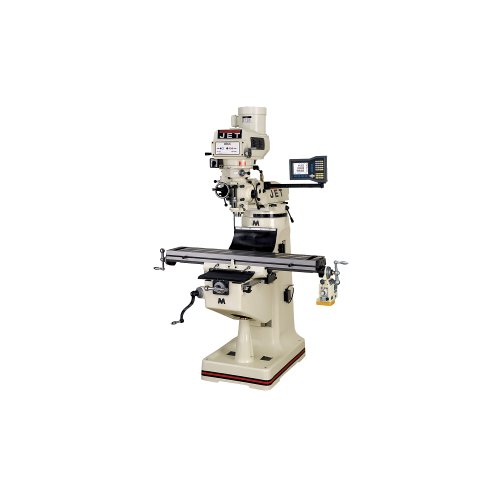

| Item | Variable Speed Milling Machine |
| Knee Travel (In.) | 14-1/2 |
| Longitudinal Travel | 34" |
| Longitudinal Travel (In.) | 34.00 |
| Max. Table Weight (lbs.) | 660 |
| Motor HP | 2 |
| Number of T-Slots | 3 |
| Overall Depth | 63 |
| Overall Height | 85 |
| Overall Width | 65-1/2 |
| Phase | 1 |
| Quill Dia. | 3-3/8" |
| Quill Dia. (In.) | 3-3/8 |
| Quill Travel (In.) | 5 |
| Ram Travel (In.) | 13-3/8 |
| Spindle Speed (RPM) | 60 to 4200 |
| Spindle Taper | R-8 |
| Spindle to Table (In.) | 17-1/2 |
| T-Slot Size (In.) | 0 3/8 |
| Table Size (In.) | 9 x 49 |
| Type | Variable Speed R8 |
| Voltage | 115/230 |
