Jet 690938

mpn:

690938

brand:

Jet

manufacturer:

Jet

MPN:

690938

Key ^	Value

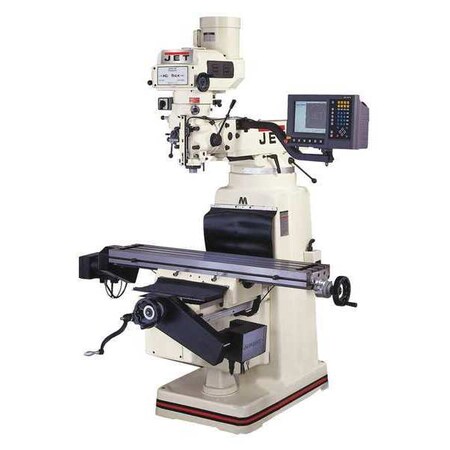

Features	CNC Vertical Milling Machine Package JTM-4VS, Precision Ground Ball Screws Eliminate Backlash for Precise Lateral Movements, Closed Loop Feedback Using Acu-Rite Precision Linear Encoders with 0.00005" Resolution, Powerful DC Servo Motor Assemblies That Include Mounting Castings and Hardware, Hand Wheels are Included for Manual Operation, ACU-RITE MILLPWR G2 CONTROLLER(USB, Ethernet compatible, Simplified navigation that eliminates multiple menu screens, 12.1" High resolution display (1024 x 768) with 3D graphics), 2 Axis
Head Angle (Deg.)	90
Head Angle Front/Back (Deg.)	45
Item	Knee/Column Milling Machine
Knee Travel (In.)	14-1/2
Max. Table Weight (lbs.)	660
Number of T-Slots	3
Overall Depth	66 in
Overall Height	85 in
Overall Length	63 in
Overall Width	66"
Quill Dia.	3 3/8 in
Quill Dia. (In.)	3-3/8
Ram Travel (In.)	13-3/8
Ram Travel Length	13-3/8 in
Spindle Taper, Spindle Taper Size	R-8
Spindle Travel Length	5 in
T-Slot Size (In.)	5/8
Table Length	9 in
Table Size (In.)	9 x 49
Table Width	49 in
Type	CNC
Voltage	230/460V
