| Backward Head Tilt Adjustment, Forward Head Tilt | 45 Degrees |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Cross Travel (In.) | 15-1/4 |
| Features | CNC Vertical Milling Machine Package JTM-1050, Precision Ground Ball Screws Eliminate Backlash for Precise Lateral Movements, Closed Loop Feedback Using Acu-Rite Precision Linear Encoders with 0.00005" Resolution, Powerful DC Servo Motor Assemblies That Include Mounting Castings and Hardware, Hand Wheels are Included for Manual Operation, ACU-RITE MILLPWR G2 CONTROLLER(USB, Ethernet compatible, Simplified navigation that eliminates multiple menu screens, 12.1" High resolution display (1024 x 768) with 3D graphics), 3 Axis |
| Feed Rate for Power Down Feed (In.) | 0.0015, 0.003, 0.006 |
| Head Angle (Deg.) | 90 |
| Head Angle Front/Back (Deg.) | 45 |
| Horsepower, Motor HP, Number of T-Slots, Phase | 3 |
| Hz | 60 |
| Includes | Mill, CNC Package, Flat Way Cover, Pleated Way Cover, Draw Bar, (3) Table Adjustment Handles, Hardware Package |

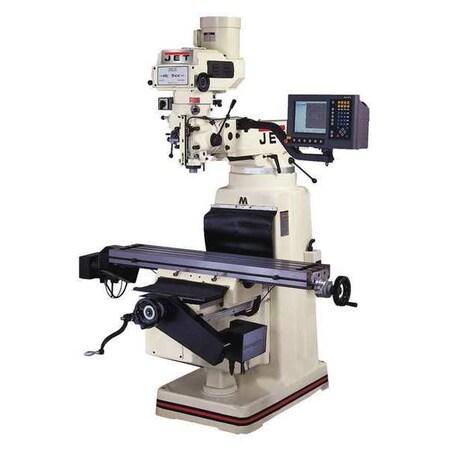

| Item | Knee/Column Milling Machine |
| Knee Travel (In.) | 14-1/4 |
| Left-Hand Head Tilt, Right-Hand Head Tilt | 90 Degrees |
| Longitudinal Travel | 35 in |
| Longitudinal Travel (In.) | 35.00 |
| Max. Spindle Speed | 3,800 RPM |
| Max. Spindle To Column Distance | 26 in |
| Max. Spindle to Table Distance, Min. Spindle to Table Distance | 19 in |
| Max. Table Weight (lbs.) | 720 |
| Min. Spindle Speed | 70 RPM |
| Min. Spindle to Column Distance | 5-1/2 in |
| Number of Spindle Speeds | Variable |
| Overall Depth | 96 in |
| Overall Height | 85 3/4 in |
| Overall Length | 69 in |
| Overall Width | 65-3/4" |
| Quill Dia. | 3 3/8 in |
| Quill Dia. (In.) | 3-3/8 |
| Quill Travel (In.) | 5 |
| Ram Travel (In.) | 20-1/2 |
| Ram Travel Length | 20-1/2 in |
| Spindle Speed (RPM) | 70 to 3800 |
| Spindle Taper, Spindle Taper Size | R-8 |
| Spindle to Table (In.) | 19 |
| Spindle Travel Length | 5 in |
| T-Slot Size (In.) | 5/8 |
| Table Length | 10 in |
| Table Load Capacity | 720 lb |
| Table Size (In.) | 10 x 50 |
| Table Width | 50 in |
| Type | CNC |
| Voltage | 230/460V |
