| Backward Head Tilt Adjustment, Forward Head Tilt | 45 Degrees |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Cross Travel | 12 in |
| Cross Travel (In.) | 12 |
| Features | CNC Vertical Milling Machine Package JTM-4VS , Features of the ACU-RITE MILLPWR G2 CNC Package , Precision Ground Ball Screws eliminate backlash for precice lateral movements , Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution , Powerful DC Servo motor assemblies that include mounting castings and hardware, 2 year warranty, 30 point inspection |
| Feed Rate for Power Down Feed (In.) | 0.0015, 0.003, 0.006 |
| Head Angle (Deg.) | 90 |
| Head Angle Front/Back (Deg.) | 45 |
| Horsepower, Motor HP, Number of T-Slots, Phase | 3 |
| Hz | 60 |
| Includes | One-Shot Lubrication System, Locks On All Moveable Surfaces, Precision Hardened and Ground Way and Table, Way Covers, R8 Drawbar, Tool Box With Tools |

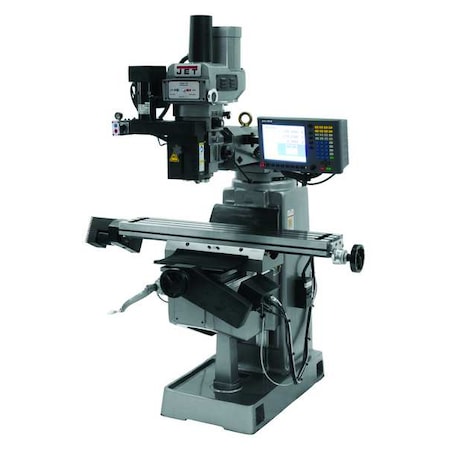

| Item | Knee/Column Milling Machine |
| Knee Travel (In.) | 14-1/2 |
| Left-Hand Head Tilt, Right-Hand Head Tilt | 90 Degrees |
| Longitudinal Travel | 34 in |
| Longitudinal Travel (In.) | 34.00 |
| Max. Spindle Speed | 4,200 RPM |
| Max. Spindle To Column Distance | 19 in |
| Max. Spindle to Table Distance | 17 1/2 in |
| Max. Table Weight (lbs.) | 660 |
| Min. Spindle Speed | 60 RPM |
| Min. Spindle to Column Distance | 4-1/2 in |
| Min. Spindle to Table Distance | 17-1/2 in |
| Number of Spindle Speeds | Variable |
| Overall Depth | 66 in |
| Overall Height, Overall Length | 63 in |
| Overall Width | 85 |
| Quill Dia. | 3 3/8 in |
| Quill Dia. (In.) | 3-3/8 |
| Quill Travel (In.) | 5 |
| Ram Travel (In.) | 13-3/8 |
| Ram Travel Length | 13-3/8 in |
| Spindle Speed (RPM) | 60 to 4200 |
| Spindle Taper, Spindle Taper Size | R-8 |
| Spindle to Table (In.) | 17-1/2 |
| Spindle Travel Length | 5 in |
| T-Slot Size (In.) | 3,5/8 |
| Table Length | 9 in |
| Table Load Capacity | 660 lb |
| Table Size (In.) | 9 x 49 |
| Table Width | 49 in |
| Type | CNC |
| Voltage | 230/460V |
