Description:

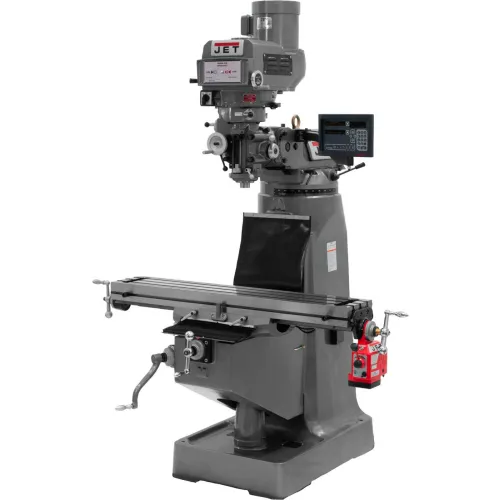

<ul style=""margin-top:0px;padding-top: 5px; padding-bottom: 5px;"">Constructed using the Meehanite? casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty<BR><BR>
<li>Meehanite Castings</li> <li>Precision bored and honed milling head</li> <li>Large diameter quill is chromed</li> <li>High precision Class 7 spindle bearings</li> <li>Chrome plated motor shaft with lower bearing support</li> <li>Spindle head is internally cooled</li> <li>Heavy duty splined motor drive</li> <li>One piece quill pinion and shaft</li> <li>Three stage power downfeed with automatic stop</li> <li>Heavy duty spindle brake</li> <li>Locks on all movable surfaces</li> <li>Precision hardened and ground ways and table</li> <li>Adjustable gibs throughout</li> <li>Internal coolant tank built into casting base for use with coolant system (coolant pump not included)</li> <li>Tolerance test sheet included</li> <li>One shot lubrication system</li> <li>Way covers</li> <li>Draw bar</li> <li>Tool box with tools</li> </ul><BR><BR>
Weight:
2200.0
Weight:
2200.0 LB
Preferred Price:
25539.33
Price:
25539.33
Min Simple Price:
14429.0
Absolute Min Price:
20489.18
Min Price:
20489.18
qty:
21
simpleSku:
jIwNDI:::692087
sku:
jIwNDI::G6:692087@y0
condition:
11
seller:
internationaltool.com
amzMan:
jet
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Collet Capacity | 1/8 - 7/8</td |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Digital Readout | Newall DP700</td |
| Distance Spindle to Column (Max.) (In.) | 19</td |
| Distance Spindle to Column (Min.) (In.) | 4-1/2</td |
| Head Movement (Deg.) | 90 deg R & L, 45 deg F & B</td |
| Max Distance Spindle to Table (In.) | 17-1/2</td |
| Motor (HP) | 2 HP, 115/230V, 1Ph</td |
| Number of Axis | 2</td |
| Number of Spindle Speeds | Variable</td |
| Overall Dimensions (L x W x H) (In.) | 66 x 63 x 85</td |
| Quill Diameter (In.) | 3-3/8</td |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006</td |
| Range of Spindle Speeds (RPM) | 60 - 4,200</td |
| SKU | 692087 |
| Spindle Taper (In. x TPI) | R-8</td |
| Spindle Travel (In.) | 5</td |
| T-Slot Centers (In.) | 2-1/2</td |
| T-Slots Number and Size (In.) | 3 and 5/8</td |
| Table Cross Travel (In.) | 12</td |
| Table Longitudinal Travel (In.) | 34</td |
| Table Longitudinal Travel With Powerfeed (In.) | 28-3/4</td |
| Table Size (L x W) (In.) | 9 x 49</td |
| Travel of Knee (In.) | 14-1/2</td |
| Travel of Ram (In.) | 13-3/8</td |
| Work Table Weight Capacity (Lbs.) | 660</td |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| internationaltool.com | JET-692087 | 14429.0 | 14429.0 | 1 | In Stock | Jet | 14429.0 @ Qty: 1+ | |||
 | Global Industrial | WBB1806170 | 15749.0 | 15749.0 | 1 | In Stock | 24 | JET | 15749.0 @ Qty: 1+ | |
 | beavertools.com | JT692087 | 15749.0 | 15749.0 | 1 | In Stock | Jet | 15749.0 @ Qty: 1+ | ||
 | JB Tools | JB-DS-WLT-692087 | 15749.0 | 15749.0 | 1 | In Stock | Jet | 15749.0 @ Qty: 1+ | ||
| elitemetaltools.com | 10505 | 15749.0 | 15749.0 | 1 | In Stock | JET | 15749.0 @ Qty: 1+ | |||
 | toolfetch.com | 692087 | 15749.0 | 15749.0 | 1 | In Stock | JET | 15749.0 @ Qty: 1+ | ||
 | AceTool | JET-692087 | 15749.0 | 15749.0 | 1 | In Stock | Jet | 15749.0 @ Qty: 1+ | ||
| ToolUp.com | JET 692087 | 15749.0 | 15749.0 | 1 | In Stock | Jet | 15749.0 @ Qty: 1+ | |||
| imsbolt.com | 692087 | 15749.0 | 15749.0 | 1 | In Stock | JET | 15749.0 @ Qty: 1+ | |||
 | Zoro | G908187923 | 21273.1 | 21273.1 | 1 | In Stock | 30 | Jet | 21273.1 @ Qty: 1+ |
