| Amps AC | 12 |
| Application, Material Application | Wood |
| Band Saw Operation | Manual |
| Band Saw Type | Vertical |
| Blade Length | 11 ft 1 in |
| Blade Thickness | 0.026 in |
| Blade Wheels Dia. | 14.75 in |
| Corded/Banded, Corded/Cordless, Power Source | Corded |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Current | 12.0 A |
| Cutting Angle | Left 5 Degrees , 90 Degrees ,Right 45 Degrees |
| Cutting Capacity Rectangle | 14" x 13" |
| Cutting Capacity Round, Max. Thickness of Cut | 14" |
| Cutting Capacity Square, Round Cutting Capacity - Horizontal | 14 in |
| Features | Resaw Capacity for Cutting Large Pieces of Wood; Slicing Veneers; Cutting Book Matched Panels; Precision Ground Cast Iron Table for Added Stability and Work Support Fence System Micro Adjustable; Dual Position Side Plate Tool-Less; Independently Adjustable; Upper and Lower Ball Bearing Guides Rigid; Four Sided Guide Post with Rack and Pinion Adjustment for Optimum Blade Support |
| HP | 3 hp |
| Hz | 60 |
| Includes | Bracket, Fence Body, Guide Rail, Handwheel with Handle, Lifting Ring, Miter Gauge Assembly, Resaw Fence, Table, Table Insert |

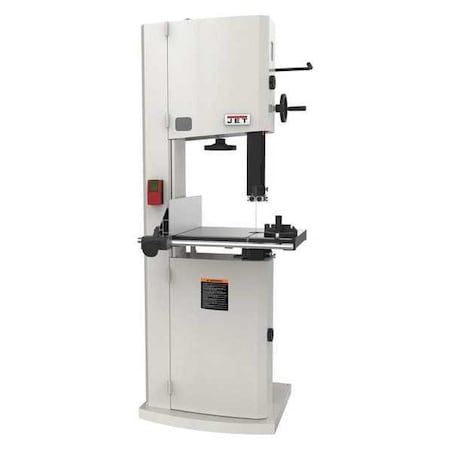

| Item | Band Saw |
| Max. Blade Length | 133 in |
| Max. Blade Width | 1 in |
| Min. Blade Length | 131 13/16 in |
| Min. Blade Width | 1/8 in |
| Miter Angle Range | 5 Degrees Left to 45 Degrees Right |
| Miter Capacity | 5 Degrees Left, 45 Degrees Right |
| Number of Speed Settings | 2 |
| Overall Depth | 29 1/2 in |
| Overall Height | 74 in |
| Overall Width | 32 in |
| Phase, Speeds | 1 |
| Rectangular Cutting Capacity - Horizontal | 14 1/8 in x 14 in |
| RPM | 1720 |
| SFPM Range | 3,100 |
| Table Dimensions | 21-1/2 in x 16 in |
| Throat Depth - Vertical | 14 1/8 in |
| Voltage | 230V AC |
