Johnson Controls M9203-BGA-2

B0787PGJJJ

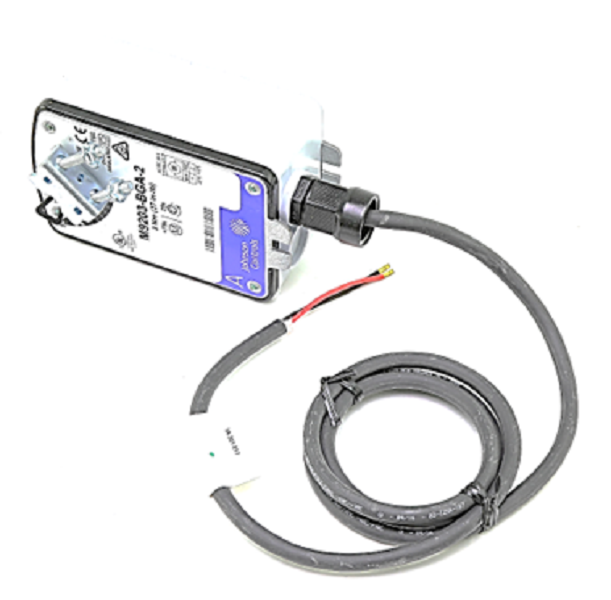

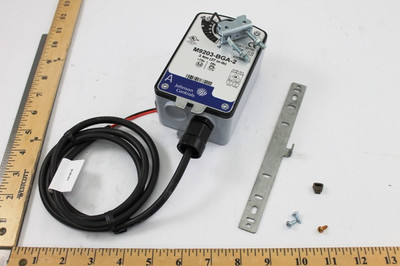

Johnson Controls M9203-BGA-2 Electric Actuator, 27 in-lb. Running Torque, -22 to 140 Degree F

Johnson Controls M9203-BGA-2 Electric Actuator, 27 in-lb. Running Torque, -22 to 140 Degree Fzoom

Attributes

Key Value
Ambient Temp. Range-22 Degrees to 140 D.
ApprovalsC-Tick, CE, CSA, UL
BrandJOHNSON CONTROLS
Control SignalTwo Position (On/Off)
Current Stock7
Date First AvailableJanuary 23, 2014
Depth2 1/4 in
Electrical ConnectionsCable
Family SeriesJohnson Controls Damper.
FeedbackNone
For Use WithDampers and Valves
Gross Weight0 lbs
Height6 3/8 in
IncludesAnti Rotation Bracket
International ShippingNo
IP RatingIP54
ItemElectric Actuator
Item NumberM9203-BGA-2
Item Weight3.73 Pounds
ManufacturerJOHNSON CONTROLS
Manufacturer Part NumberM9203-BGA-2
Motor DirectionCW or CCW
MountingDirect Coupled
Mounting TypeDirect Mount
MpnM9203-BGA-2
Net Weight2 lbs
Nominal Supply Voltage24 VAC, 24 VDC
Nominal Timing75 s
Package Dimensions6 x 4 x 2 inches; 3.73 .
Power Consumption5VA, 5 VA
Product SeriesM9203
Product with faster shi.true
Replaces Honeywell Moto.Mfr. No. MS8103A1030
Rotational Stroke (Deg)95
Shaft RotationBy Wiring
Shaft SizeSquare 1/4 ", Round 1/4.
Shaft TypeSelf-Centering Clamping
Shippingundefined (Fixed Shippi.
Signal TypeOn/Off
SKUZO-G5080372
Spring ReturnYes
Stroke Deg.90
Temperature Range-22-140 ?F
TimingLess than 75 sec
Torque27 in-lb, 27 in lb
Torque Rating27 lb-in
UPC66201124985
Voltage24V AC/DC
Weight2.00
Width3 15/16 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
alliedcontrols.comM9203-BGA-2154.211In StockJohnson Controls154.21 @ 1
hvacdiscountstore.comJOH--M9203-BGA-2155.1216JOHNSON CONTROLS155.12 @ 1
thumbzoomblackhawksupply.comM9203-BGA-2155.981In StockJohnson Controls155.98 @ 1
thumbzoomcappusa.com2982210160.451In StockJohnson Controls160.45 @ 1
thumbzoomZoroG5080372169.99112Johnson Controls2.85169.99 @ 1
thumbzoomgsistore.comM9203-BGA-2173.0214Johnson Controls173.02 @ 1
thumbzoomenergycontrol.comM9203-BGA-2173.721In StockJOHNSON CONTROLS173.72 @ 1
thumbzoomVoomi SupplyM9203-BGA-2178.381In StockJohnson Controls178.38 @ 1
thumbzoomhomeessentialsdirect.comM9203-BGA-2178.891In StockJOHNSON CONTROLS178.89 @ 1
thumbzoomRadwellM9203-BGA-2180.017JOHNSON CONTROLS180.0 @ 1
thumbzoomGalcoM9203-BGA-2-JHSN183.831In StockJohnson Controls2.0183.83 @ 1
thumbzoomfurnacepartsource.comM9203-BGA-2185.8114Johnson Controls185.81 @ 1
thumbzoommidwestapplianceparts.comM9203-BGA-2-JO-P187.431In StockJohnson Controls187.43 @ 1
thumbzoomindustrialstores.comM9203-BGA-2188.7911Johnson Controls188.79 @ 1
thumbzoomsimsupply.comZO-G5080372201.271In StockJohnson Controls201.27 @ 1
grainger.caJHCM9203BGA2244.945008881In StockJOHNSON CONTROLS2.85244.94500888 @ 1
KeleM9203-BGA-2249.61In StockJohnson Controls249.6 @ 1
thumbzoomRaptor SuppliesAD4HJG279.4492351In StockJOHNSON CONTROLS279.449235 @ 1
