Johnson Controls R-4000-3

B00BXPE5LQ

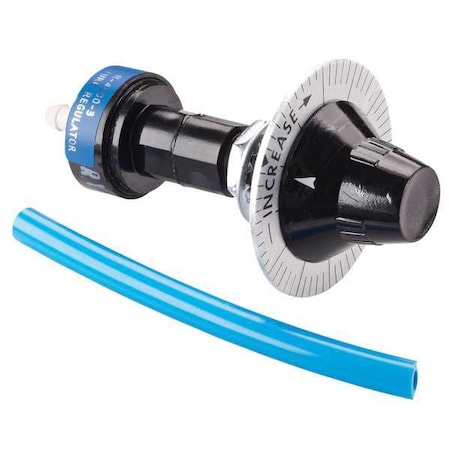

Miniature Pressure Regulator

Miniature Pressure Regulatorzoom

Attributes

Key Value
(F)NPT Outlet (In.)1/4
(M)NPT Inlet (In.)1/4
Adjustment Range - Regu.0 to 12 psi
Air Inlet Size1/4 in
Air Inlet TypeNPT
Air Outlet Size1/4 in
Best Sellers RankSee Top 100 in Automoti.
Body Materialplastic
BrandJohnson Controls
Country of Origin (subj.Mexico
Current Stock4
Date First AvailableJuly 5, 2012
Family SeriesJohnson Controls Miscel.
For Fluid TypeAir
Gross Weight0 lbs
International ShippingNo
ItemRegulator 12Psi Span, C.
Item model numberR-4000-3
Item NumberR-4000-3
ManufacturerJohnson Controls, Johns.
Manufacturer Part NumberR-4000-3
Max. Inlet Pressure - R.25 psi
Max. Temp. (F)120
Max. Temp. - Regulators120 Degrees F
Minimum Operating Tempe.40 Degrees F
MpnR-4000-3
Net Weight0 lbs
Overall Depth3 1/16 in
Overall Height3 1/16 in
Overall Height - Regula.3.06 in
Overall Width1 5/8 in
Overall Width - Regulat.1.65 in
Package Dimensions10.5 x 3 x 3 inches; 4 .
Pipe Size - Regulators1/4 in
Preset Setting (PSI)12
Pressure Gauge IncludedNo
Pressure Range (PSI)0 to 12
Product with faster shi.true
Seal MaterialRubber
Shippingundefined (Fixed Shippi.
SKUZO-G7140253
Spring MaterialStainless Steel
SubCategoryPneumatics
UPC785028328908
Weight0.10, 4.00
