Julabo 9021704.33.CSA/UL
Julabozoom
brand:
manufacturer:
Description:

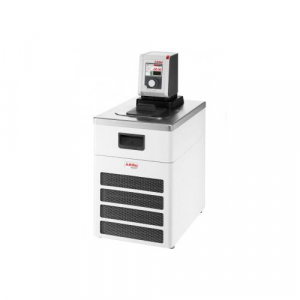

<p><strong>Julabo, 9021704.33.CSA/UL, DD-600F Refrigerated, Heating Circulator 200-230V/50-60Hz </strong> </p> <p><strong>Features with all optional accessories: </strong> </p> <ul><li>Optimized cooling coil design saves space in the bath tank </li> <li>Powerful and infinitely adjustable pressure pump </li> <li>Flow rate 27 l/min, pressure 0.7 bar </li> <li>Easy switching between internal and external circulation </li> <li>Large color TFT display, multilingual interface </li> <li>Central rotary knob (controller) simplifies operation </li> <li>Integrated programmer </li> <li>Integrated external Pt100 connection </li> <li>USB connection </li> <li>RS232 interface or analog interfaces (optional) </li> <li>Integrated drain makes emptying liquid easy and safe. </li> <li>Removable ventilation grid </li> <li>Space-saving cooling coil design yields more usable space in the bath tank </li> <li>Powerful cooling machine </li> </ul>

Attributes

Key ^Value
Absolute temperature calibration3 Point Calibration
Ambient temperature+5.0 ... +40.0 ?C
Barbed fittings inner diameter8/12 mm
Bath cover, External pt100 sensor connectionintegrated
Bath tankStainless steel
Dimensions (W x L x H)33 x 47 x 69 cm
Electronic Timer hr:min99 ... 59
Filling volume5 ... 7.5 l
Integrated programmer8x60 steps
Pump connectionsM16x1 male
Setting the resolution of the temperature display0.01 ?C
Temperature controlPID2
Temperature display3.5" TFT Display
Temperature settingShaft Encoder
Temperature stability?0.01 ?C
Usable bath opening (W x L / D)22 x 15 / 15 cm
Weight35.7 kg
Working temperature range-35 ... +200 ?C
