- mpnNTA-815
- brandname: Koyo
- manufacturername: Koyo

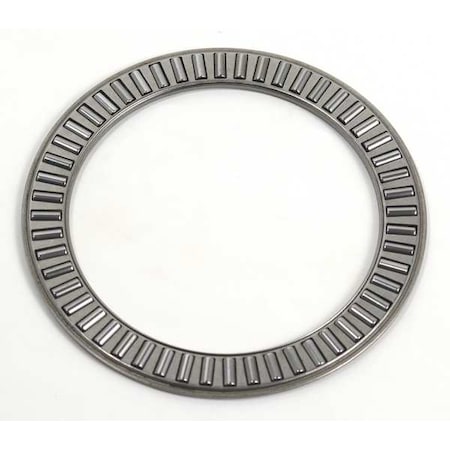

Thrust Roller Brg - KOY NTA-815
- Brand: Koyo
- PartNumber: NTA-815
- Model: NTA-815
- Manufacturer: Koyo
- Label: Koyo
Attributes
| Key | Value |
|---|
| Application | Automobile Field, Drive. |
| Bearing Design | NTA, TC |
| Bearing Industry Number | 815 |
| Bearing Type | Thrust |
| Bore Dia. (In.) | 0.5 in |
| Bore Dia. (mm) | 12.7 mm |
| Bore Diameter | 1/2 in |
| Compatible Washer | TRA-815, TRB-815, TRC-8. |
| Country of Origin (subj. | Japan |
| Dynamic Axial Load Capa. | 1,610 lbf |
| Dynamic Load Capacity (. | 1,600 lb |
| Dynamic Load Capacity (. | 7,160 N |
| Dynamic Load Rating | 7.16 kN |
| Height (In.) | 0.0781 in |
| Inner Diameter | 0.5" (12.7mm) |
| Item | Needle Roller Thrust Be. |
| Lubricant Material | Oil |
| Material | Steel |
| Max. RPM | 19,000 RPM |
| Maximum Speed | 19,000 RPM |
| Maximum Temperature | 248 Degrees F |
| Minimum Temperature | -22 Degrees F |
| Outer Diameter | 0.937" (23.8mm) |
| Outside Dia. (In.) | 0.937 in |
| Outside Dia. (mm) | 23.8 mm |
| Outside Diameter | 15/16 in |
| Overall Width | 0.078 in, 0.078" (2mm) |
| Roller Material | Alloy Steel |
| Roller Material Grade | SUJ 2 |
| RPM | 19000 |
| Series | Inch Series |
| Special Features | Snap Ring |
| Standards | ANSI/ABMA 21.2 |
| Static Axial Load Capac. | 4,300 lbf |
| Static Load Capacity (L. | 4,300 lb |
| Static Load Capacity (N) | 19,130 N |
| Static Load Rating | 19.13 kN |
| System of Measurement | Inch |
| Thrust Bearing Type | Thrust Needle Roller an. |
| Type | Needle Roller |
| UPC Code | 605790192739 |
| Washer Material | Not Applicable |
| Washer Material Grade | Not Applicable |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| us.rs-online.com | 72061543 | 2.72 | 1 | 125 | | Koyo | | 2.72 @ 1 |
 | Zoro | G001800361 | 2.79 | 3 | 35 | 10 | Koyo | 0.01 | 2.79 @ 3 |
 | Purvis | NTA-815 | 2.9 | 1 | 35 | | Koyo | | 2.9 @ 1 |
| factorysupplyoutlet.com | CL15IV | 6.71 | 1 | In Stock | | KOYO | | 6.71 @ 1 |
