AT-A-GLANCE H-1.5-64-ALLSS

B00C737WZ4

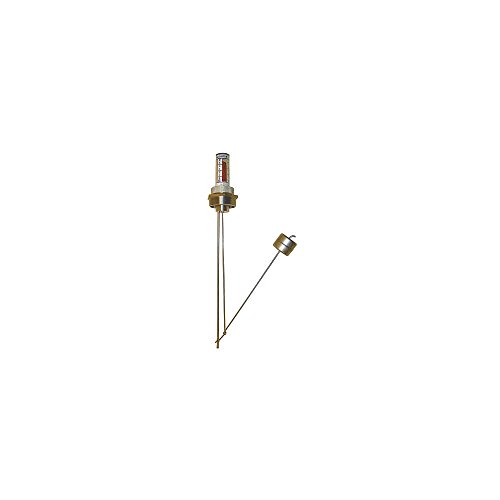

Krueger - H-1.5-64-ALLSS - Therma Level Gauge, Tank 64 D, 1.5 NPT

Krueger - H-1.5-64-ALLSS - Therma Level Gauge, Tank 64 D, 1.5 NPTzoom

Attributes

Key Value
Assembly Nut MaterialAluminum
Bushing MaterialStainless Steel
Calibration Unit Increm.1/8s of a tank
Calibration Unit Materi.Inner Glass, Outer Plas.
Connection Size1.5 in NPT
Country of Origin (subj.United States
FeaturesCan Accommodate Pipe Ri.
Float Dia.1 3/8 in
Float Diameter1 3/8 in
Float MaterialStainless Steel
Float Rod Material316 Stainless Steel
For Container CapacityNo Exact Capacity
For Container Depth64 in
For Container TypeNo Specific Style
For Liquid TypeDEF
Gasket MaterialDuro Nitrile
Graduation MarksEmpty; Full; 1/8 Increm.
Housing MaterialCellulose Acetate
Includes-
Increment of VariationPrimary 1/4, Secondary .
ItemLevel Gauge
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Maximum Operating Press.70 psi
Maximum Temperature200 Degrees F
Minimum Temperature-20 Degrees F
Pipe Size1 1/2 in
Pressure Rating70 psi
Resolution1/8 of a Tank
Rivet MaterialStainless Steel
Rod Material316 Stainless
Seal MaterialNitrile Rubber
Special Features-
StandardsFL Approved
Tank Depth64 in
Temp. Range-20 Degrees to 200 Deg.
Thread GenderMale
Thread TypeNPT
TypeTank
Units of MeasurementInches
Window MaterialGlass
