| Antimicrobial | No |
| Bend Radius | 4 in |
| Burst Pressure | 120 psi |
| Compatible Chemicals | Acetic Acid (Glacial), Acetic Acid 20%, Air, Beverage, Calcium Chloride, Carbon Dioxide, Chromic Acid 10%, Chromic Acid 5%, Citric Acid 50%, Dry Food, Fertilizers, Formic Acid, Fresh Water, Fungicides, Glycerin, Herbicides, Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrogen Peroxide, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Pesticides, Phosphoric Acid (40% Solution), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sulfuric Acid (10% - 75%), Sulfuric Acid (to 10%), Wet Food |
| Country of Origin (subject to change) | United States |
| Fitting Material | 316 Stainless Steel x 316 Stainless Steel |
| Fitting Size | 2 in x 2 in |
| Fitting Type | FIP x FIP |
| For Media Type | Acetic Acid, Air, Beverage, Calcium Chloride, Carbon Dioxide, Chromic Acid, Citric Acid, Dry Food, Fertilizers, Formic Acid, Fungicides, Glycerin, Herbicides, Hydrochloric Acid, Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Pesticides, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Water, Wet Food |
| Hose Color | Clear |
| Hose Configuration | Coupled Assembly |
| Hose Cover Material | PVC |
| Hose Fitting A Material | 316 Stainless Steel |
| Hose Fitting A Size | 2 in |
| Hose Fitting A Type | FIP |
| Hose Fitting B Material | 316 Stainless Steel |
| Hose Fitting B Size | 2 in |
| Hose Fitting B Type | FIP |
| Hose Fittings | 316 Stainless Steel 2 in FIP x 316 Stainless Steel FIP 2 in |
| Hose Inside Dia. | 2 in |
| Hose Length | 15 ft |
| Hose Outside Dia. | 2 13/32 in |
| Hose Reinforcement Material | Not Reinforced |
| Hose Tube Material | PVC |

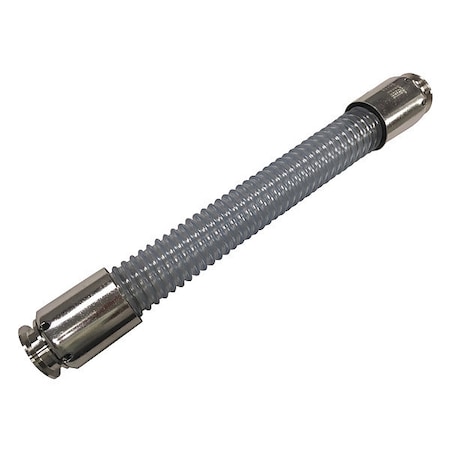

| Item | Food Grade Hose Assembly |
| Max. Working Pressure @ 70 F | 40 psi |
| Not Recommended Chemicals | Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Diesel Fuel, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Turpentine, Vegetable Oil, Xylene |
| Safety Factor | 3:1 |
| Standards | 3A, BSE/TSE, FDA, ROHS, USDA |
| Static Control Wire | No |
| Temp. Range | -4 Degrees to 150 Degrees F |
| Vacuum Rating | 28.00 in Hg |
