Attributes
| Key | Value |
|---|---|
| Aircraft Drill | No |
| Circuit Board Drill | No |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Country of Origin (subject to change) | India |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1535 |
| Depth x Dia. Ratio | 8xD |
| Depth:Dia. Ratio | 8xD |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | AlTiN Nano |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 140 Degrees |
| Drill Bit Point Type | 6 Facet Point |
| Drill Bit Size | 3.90 mm |
| Drill Diameter Tolerance | +0.00000 in /-0.00005 in |
| Drill Length Class | Micro Length |
| Finish - Machining | AlTiN |
| Flute Length | 1 21/32 in |
| Flute Type | Spiral |
| Grade | Micrograin Carbide |

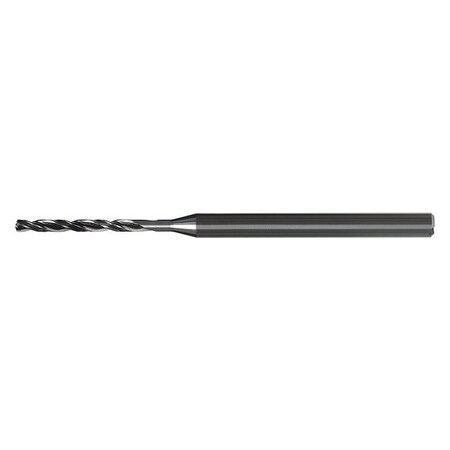

| Item | Micro Drill Bit |
| List Number | M105 |
| Manufacturer Series | HYDROS Mini Series 814 |
| Material - Machining | Carbide |
| Material Grade - Machining | Sub Micron |
| Maximum Drilling Depth | 1.2280 in |
| Measurement System | Metric |
| Number of Coolant Holes | 2 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 76.00 mm |
| Point Type | 6 Facet |
| Primary Material Application | Brass, Cast Iron, Composite, Copper, Graphite |
| Primary Material Application ISO Code | H, M, P, S |
| Series | 814 HYDROS MINI |
| Shank Dia. | 5/32 in |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sizes Included | 3.90mm |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Web Construction | Split |
| Web Thinning | X-Thinned |
