Attributes
| Key | Value |
|---|---|
| Aircraft Drill | No |
| Application | Metalworking |
| Circuit Board Drill | Yes |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subject to change) | India |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1079 |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Uncoated |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 130 Degrees |
| Drill Bit Point Type | 4 Facet Point |
| Drill Bit Size | 2.74 mm |
| Drill Diameter Tolerance | +0.000mm/-0.008mm |
| Drill Length Class | Micro Length |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 3/8 in |
| Flute Type | Spiral |
| Grade | Micrograin Carbide |

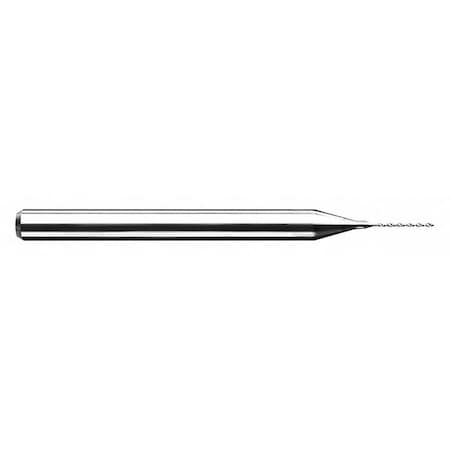

| Item | Micro Drill Bit |
| List Number | M226 |
| Material - Machining | Carbide |
| Material Grade - Machining | Sub Micron |
| Maximum Drilling Depth | 0.4000 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 38.00 mm |
| Point Type | 4 Facet |
| Primary Material Application | Aluminum, Carbon Fiber, Graphite, Titanium |
| Primary Material Application ISO Code | N |
| Series | 226 |
| Shank Dia. | 7/64 in |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Shop By | Closeouts |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Web Construction | Split |
| Web Thinning | X-Thinned |
