| Application | Metalworking |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subject to change) | United States |
| Cutting Direction, Spiral Direction | Right Hand |
| Decimal Equivalent | 0.0625 |
| Depth x Dia. Ratio, Depth:Dia. Ratio | 3xD |
| Drill Bit Dimension Type, Measurement System | Fractional Inch |
| Drill Bit Finish | TiAlN |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 142 Degrees |
| Drill Bit Point Type | 6 Facet Point |
| Drill Bit Size | 1/16 in |
| Drill Diameter Tolerance | +0.00024 in /+0.00083 in |
| Drill Length Class | Screw Machine Length |
| Finish - Machining | AlTiN |
| Flute Length | 1 9/32 in |
| Flute Type | Spiral |
| Grade | Micrograin |

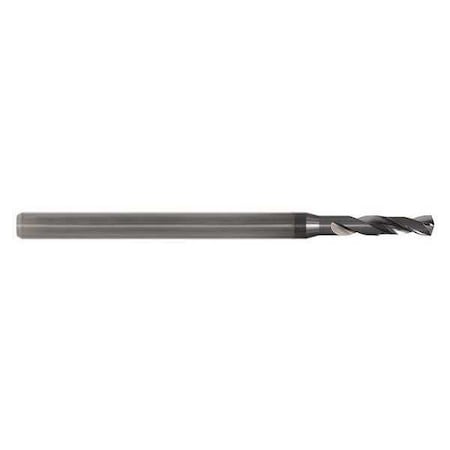

| Item | Screw Machine Drill Bit |
| List Number | 160 |
| Material - Machining | Carbide |
| Material Grade - Machining | Sub Micron |
| Maximum Drilling Depth | 49/64 in |
| Number of Flutes | 2 |
| Overall Length | 76.20 mm |
| Point Type | 6 Facet |
| Primary Material Application | Brass, Cast Iron, Composite, Copper, Graphite |
| Primary Material Application ISO Code | H, M, P, S |
| Series | 160 ORION |
| Shank Dia. | 5/16 in |
| Shank Type, Shank Type - Machining | Straight |
| Sizes Included | 1/4" |
| Standards | Not Rated |
| Web Construction | Split |
| Web Thinning | X-Thinned |
