Attributes
| Key | Value |
|---|---|
| ANSI Code | BDMT170416ERJTCA6535 |
| ANSI Number | BDMT170431ERJTCA6535 |
| Cast Iron (K) Compatibility | No |
| Chip-Breaker | Yes |
| Chip-Breaker Code | JT |
| Chip-Breaker Style | Single Sided |
| Clearance Angle | 15 Degrees |
| Coating | TiCN+Al2O3+TiN |
| Coating Process | CVD |
| Corner Radius | 0.1220 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Milling |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 17.00mm |
| Features | High Heat and Wear Resistance |
| Finish - Machining | TiCN+Al2O3+TiN |
| For Use With | MEC040R-17-4T-M, MEC050R-17-4T-M, MEC050R-17-5T-M, MEC063R-17-5T, MEC063R-17-5T-M, MEC063R-17-6T, MEC063R-17-6T-M, MEC080R-17-6T, MEC080R-17-6T-M, MEC080R-17-8T, MEC1000-S100-17, MEC1000-S100-6.3-17, MEC100R-17-7T-MN, MEC100R-17-7TN, MEC100R-17-9TN, MEC1250-S100-17 , MEC1250-S125-17, MEC1250-S125-7.9-17, MEC125R-17-9T, MEC125R-17-9T-M, MEC1500-S125-17 , MEC1500-S125-9.5-17, MEC160R-17-12T, MEC160R-17-12T-M, MEC2000R-17-4T, MEC25-M12-17-2T, MEC25-S20-17, MEC25-S25-160-17, MEC25-S25-17, MEC25-S25-210-17, MEC2500R-17-5T, MEC28-S25-210-17, MEC3000R-17-6T, MEC32-M16-17-3T, MEC32-S25-17, MEC32-S32-17, MEC32-S32-200-17, MEC32-S32-250-17, MEC32-S32-250-17-3, MEC35-S32-250-17, MEC40-S32-17, MEC40-S32-240-17, MEC40-S32-250-17-3, MEC40-S32-250-17-4, MEC4000R-17-7TN, MEC50-S32-17, MEC50-S42-250-17-4, Mfr. No. MEC1000-S750-17 |
| Grade | CA6535 |
| Hardened (H) Compatibility | No |
| Hole Type | 40 Degrees to 60 Degrees Double Countersink Hole |
| Included Angle | 82 Degrees |
| Inscribed Circle | 0.378 in |
| Insert Application | Milling |
| Insert Holding Type | Screw |
| Insert Material | Carbide |
| Insert Shape | Parallelogram |
| Insert Size | 170431 |
| Insert Style | BDMT |
| Insert Thickness | 0.193" |
| ISO Number | BDMT170431ERJTCA6535 |

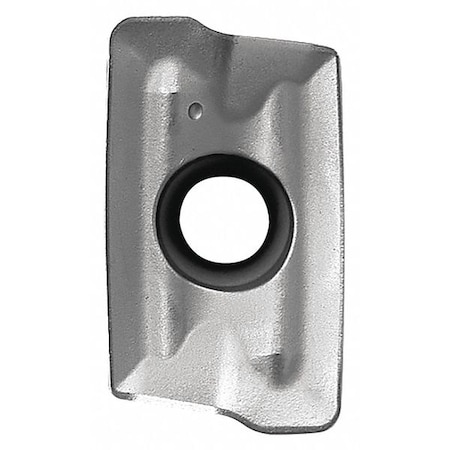

| Item | Parallelogram Milling Insert |
| Lead Angle | 90 Degrees |
| Manufacturer Grade | CA6535 |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Mounting Hole Dia. | 0.1730 in |
| Mounting Style | Screw |
| No. of Edges | 2 |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.122" |
| Number of Cutting Edges | 2 |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application ISO Code | M, S |
| Rake | Positive |
| Secondary Material Application | Nickel, Titanium |
| Secondary Material Application ISO Code | S |
| Series | MEC |
| Shape | Parallelogram |
| Stainless (M) Compatibility | No |
| Steel (P) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Thickness | 0.193 in |
| Through Hole Inside Dia. | 0.1730 in |
| Width | 0.3780 in |
| Workpiece Compatibility | Super Alloy (S) |
