| ANSI Code | CNMG431WQ CA515 |
| ANSI Number | CNMG431WQ-CA515 |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Super Alloy (S) Compatibility | No |
| Chip-Breaker Code | WQ |
| Chip-Breaker Style | Molded, On Two Sides |
| Chip-Breaker, Steel (P) Compatibility, Wiper Insert | Yes |
| Clearance Angle | 0 Degrees |
| Coating | TiCN/Al2O3/TiN |
| Corner Radius | 1 |
| Country of Origin (subject to change) | Korea, Republic of |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Features | Improved Wear Resistance and Stability |
| Finish - Machining | TiCN+Al2O3+TiN |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | CA515 |
| Included Angle | 80 Degrees |
| Inscribed Circle, No. of Edges, Number of Cutting Edges | 4 |
| Insert Application | Finishing |
| Insert Code | CNMG431 |
| Insert Holding Type | Screw |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape | Diamond |
| Insert Size | 431 |
| Insert Style | CNMG |
| Insert Thickness | 0.1875" |
| ISO Number | CNMG120404WQ |

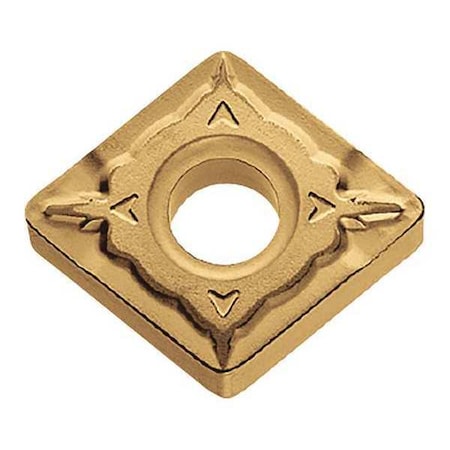

| Item | Diamond Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.203" |
| Mounting Style | Clamp |
| Nose Radius | 0.0156" |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Shape | Rhombic |
| Thickness | 3 |
| Workpiece Compatibility | Steel (P) |
