Kyocera CNMG544PH CA530

B0772WFPQC

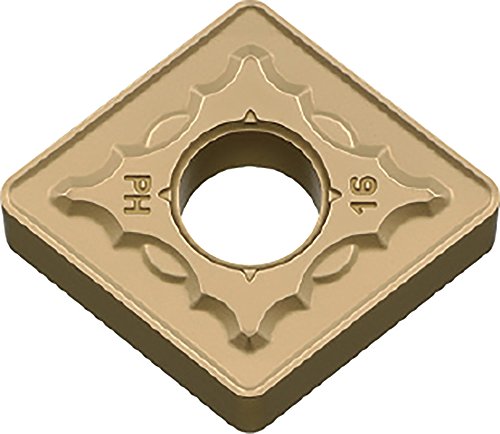

KYOCERA CNMG544PH CA530 Turning Insert for Steel, CA530 Grade, Carbide, Ph Chip Breaker, CNMG, 0.063" Corner Radius, Neutral, 0.6250" IC, Ticn/Al2O3/Tin

KYOCERA CNMG544PH CA530 Turning Insert for Steel, CA530 Grade, Carbide, Ph Chip Breaker, CNMG, 0.063" Corner Radius, Neutral, 0.6250" IC, Ticn/Al2O3/Tinzoom

Attributes

Key Value
ANSI CodeCNMG544PH CA530
ANSI NumberCNMG544PH-CA530
Cast Iron (K) Compatibi.No
Chip-BreakerYes
Chip-Breaker CodePH
Chip-Breaker StyleMolded, On Two Sides
Clearance Angle0 Degrees
CoatingTiCN/Al2O3/TiN
Corner Radius4
Country of Origin (subj.Japan
Cutting ApplicationTurning
Cutting DirectionNeutral
FeaturesHigh Stability, Wear Re.
Finish - MachiningTiCN+Al2O3+TiN
For Use WithToolholders, Boring Bars
GradeCA530
Hardened (H) Compatibil.No
Included Angle80 Degrees
Inscribed Circle5
Insert ApplicationRoughing
Insert CodeCNMG544
Insert Holding TypeScrew
Insert MaterialCarbide
Insert ShapeDiamond
Insert Size544
Insert StyleCNMG
Insert Thickness0.2500"
ISO NumberCNMG160616PH
ItemDiamond Turning Insert
Manufacturer GradeCA530
MaterialCarbide
Material - MachiningCarbide
Measurement SystemFractional Inch
Mounting Hole Dia.0.250"
Mounting StyleClamp
No. of Edges4
Non Ferrous (N) Compati.No
Nose Radius0.0625"
Number of Cutting Edges4
Primary Material Applic.Steel
Primary Material Applic.P
RakeNegative
Relief Angle0 Degrees
ShapeRhombic
Stainless (M) Compatibi.No
Steel (P) CompatibilityYes
Super Alloy (S) Compati.No
Thickness4
Workpiece CompatibilitySteel (P)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier

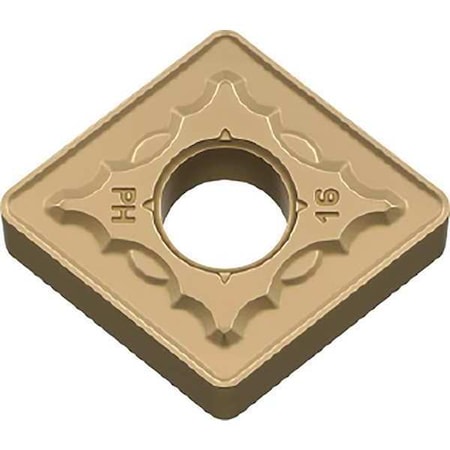

thumbzoomZoroG738107514.2610In Stock13Kyocera0.4814.26 @ 10
Grainger53LG0618.9210In Stock10KYOCERA18.92 @ 10
