| ANSI Code | DCGT21502MPCF |
| Chip-Breaker | Yes |
| Chip-Breaker Code | CF |
| Clearance Angle | 7 Degrees |
| Corner Radius | .2 |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Back Boring, Copying, External Turning, Sub-Spindle Turning |
| Cutting Direction | Neutral |
| Cutting Edge | Minus Tolerance Corner Radius; Polished; Sharp Edge |
| Features | For Excellent Surface Finish During Continuous Aluminum Machining, High Hardness Close to that of Diamond with Kyocera's Proprietary Hydrogen-Free DLC Coating |
| Finish - Machining | DLC |
| General Shape | Diamond |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Included Angle | 55 Degrees |
| Inscribed Circle | 2 |
| Insert Code | 21.5.2 |
| Insert Holding Type | Screw or Clamp |
| Insert Shape | Diamond |
| ISO Number | DCGT070201MP-CF |

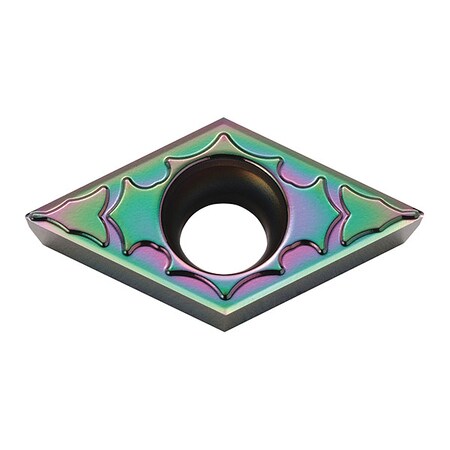

| Item | Diamond Turning Insert |
| Manufacturer Grade | PDL010 |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 2 |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Non-Ferrous |
| Primary Material Application ISO Code | N |
| Rake | Positive |
| Shape | Diamond |
| Thickness | 1.5 |
| Through Hole Inside Dia. | 0.1102" |
