| ANSI Code | DNMG433GS CA510 |
| ANSI Number | TCMT 2(1.5)2-UR 4315 |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Super Alloy (S) Compatibility | No |
| Chip-Breaker Code | GS |
| Chip-Breaker Style | Molded, On Two Sides |
| Chip-Breaker, Steel (P) Compatibility | Yes |
| Clearance Angle | 0 Degrees |
| Coating | TiCN/Al2O3/TiN |
| Corner Radius | 3/64 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Features | High Wear Resistance |
| Finish - Machining | TiCN+Al2O3+TiN |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | CA510 |
| Included Angle | 55 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Application | Medium |
| Insert Holding Type | Screw |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape | Diamond |
| Insert Size | 433 |
| Insert Style | DNMG |
| Insert Thickness | 0.1875" |
| ISO Number | DNMG150412GS |

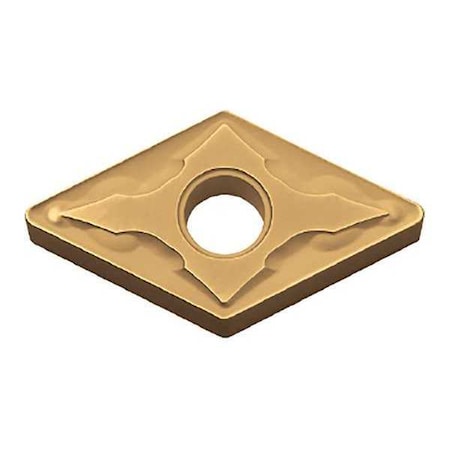

| Item | Diamond Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.203" |
| Mounting Style | Clamp |
| No. of Edges, Number of Cutting Edges | 4 |
| Nose Radius | 0.0469" |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Shape | Rhombic |
| Thickness | 3/16 in |
| Workpiece Compatibility | Steel (P) |
