| ANSI Code | GDM2420N020GM |
| Chip-Breaker | Yes |
| Chip-Breaker Code | GM |
| Coating Process | PVD |
| Corner Radius | 0.20mm |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Grooving, Traversing |
| Cutting Direction | Neutral |
| Cutting Height | 4.30mm |
| Cutting Location | External |
| Finish - Machining | Megacoat Nano |
| For Toolholder | KGDL...-2, KGDL...-2.4, KGDL...JX-2, KGDL...JX-2.4, KGDR...-2, KGDR...-2.4, KGDR...JX-2, KGDR...JX-2.4 |
| Hole Type | No Hole |
| Insert Holding Type | Clamp |
| Insert Size | 2420 |
| ISO Number | GDM2420N-020GM |

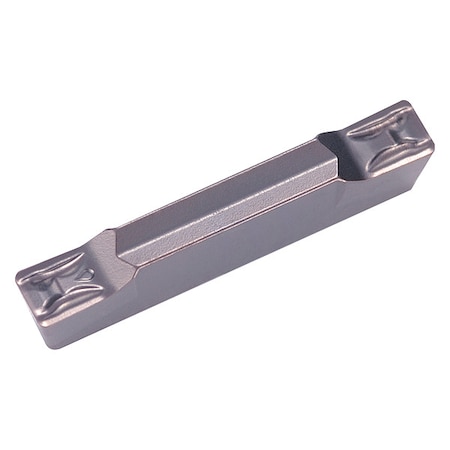

| Item | Indexable Parting and Grooving Insert |
| Manufacturer Grade | PR1535 |
| Material - Machining | Carbide |
| Max. Grooving Width | 2.40mm |
| Measurement System | Metric |
| Number of Cutting Edges | 2 |
| Overall Length | 20.00mm |
| Primary Material Application | High-Temperature Alloys |
| Primary Material Application ISO Code | S |
| Rake | Positive |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application ISO Code | M |
