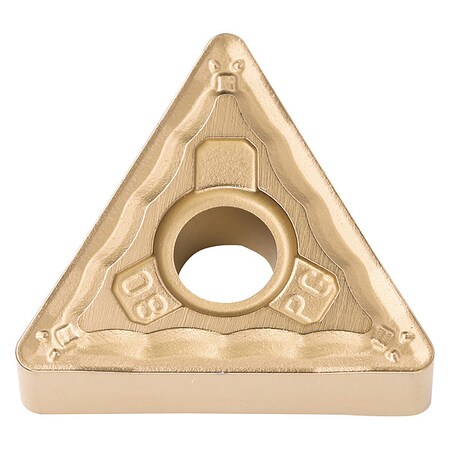

| ANSI Code | TNMG332PG |
| Chip-Breaker | Yes |
| Chip-Breaker Code | PG |
| Chip-Breaker Style | Medium Roughing |
| Clearance Angle | 0 Degrees |
| Coating Process | PVD |
| Corner Radius | 1/32" |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Boring, Chamfering, Copying, External Turning, Facing |
| Cutting Direction | Neutral |
| Features | Megacoat Nano for Efficient Machining with High-Quality Surface Finishes and Superior Wear and Adhesion Resistance, Recommended Cermet for Stable Steel Machining and High Quality Surface Finish |
| Finish - Machining | Megacoat Nano |
| General Shape, Insert Shape, Shape | Triangle |
| Hole Type | Straight Hole |
| Included Angle | 60 Degrees |
| Inscribed Circle | 3/8" |
| Insert Code | 332 |
| Insert Holding Type | Screw |
| ISO Number | TNMG160408PG |
| Item | Diamond Turning Insert |
| Manufacturer Grade | PV720 |
| Material - Machining | Cermet |
| Material Grade - Machining | TiCN Component |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 6 |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | Negative |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application ISO Code | M |
| Thickness | 3 |
| Through Hole Inside Dia. | 0.1500" |
